02K641 Series
Manufacturer: Rosenberger
Beta
⌘K

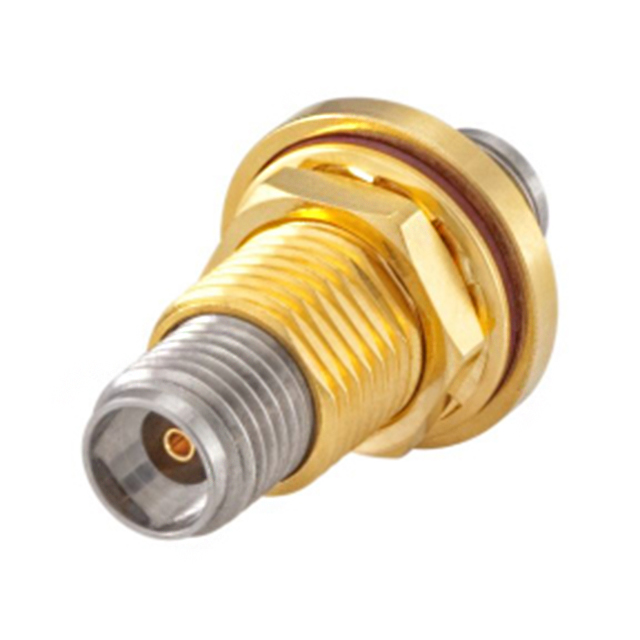

PRECISION 2.92 ADAPTER
| Part | Insertion Loss | Mating Cycles | Dielectric Material | Center Contact Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Frequency - Max [Max] | Style | Center Contact Plating | Adapter Series | Conversion Type | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Mounting Type | Center Gender | Impedance | Convert To (Adapter End) | Convert To (Adapter End) | Adapter Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 0.63 dB | 500 | Polystyrene (PS) | Beryllium Copper | Gold | 85 °C | -40 C | Beryllium Copper | 40 GHz | Straight | Gold | RPC-2.92 to RPC-2.92 | Same Series | OS-2.9 | Jack Female Socket | 2.92 mm | Panel Mount | Female to Female | 50 Ohms | Jack Female Socket | 2.92 mm | Jack to Jack | Bulkhead |
