9641 Series
Manufacturer: Belden Inc.
Beta
⌘K

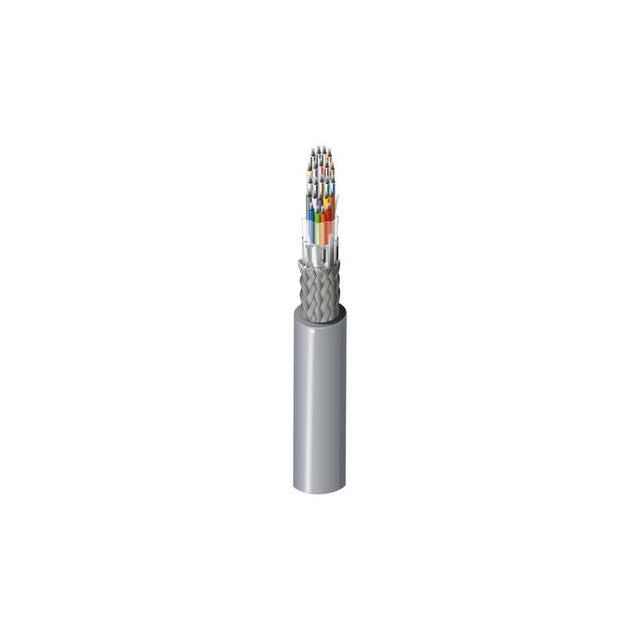

CABLE 23COND 24/26AWG GRAY
| Part | Shield Material | Shield Coverage | Ratings | Shield Type | Usage | Voltage | Wire Gauge | Length | Length | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Features | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 90 % | UL Style 2464 | Braid | Computer | 300 VDC | 24 AWG 26 AWG | 304.8 m | 1000 ft | 23 | Gray | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 8.89 mm | 0.35 in | Poly-Vinyl Chloride (PVC) | Drain Wire | Copper Tinned | 80 °C | -20 ░C | 32 AWG 34 AWG | 7 |
