80101 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

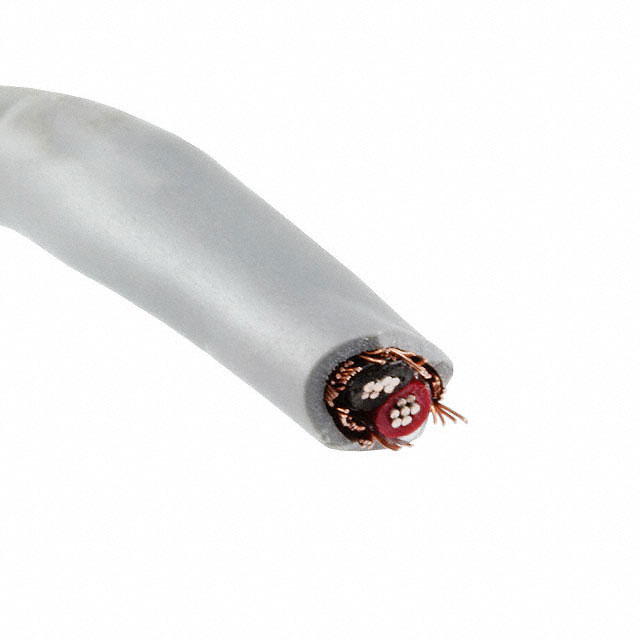

CABLE 2COND 28AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Length [x] | Length [x] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Voltage | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Cable Type | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Polyphenylene Ether (PPE) | 100 ft | 30.5 m | Polyurethane (PU) | 4.27 mm | 0.168 in | 40 AWG | 19 | Copper Tinned | 600 V | 28 AWG | 0.0319 in | 0.81 mm | 2 | Multi-Conductor | Braid | 90 °C | -50 °C | Slate |
