330648 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

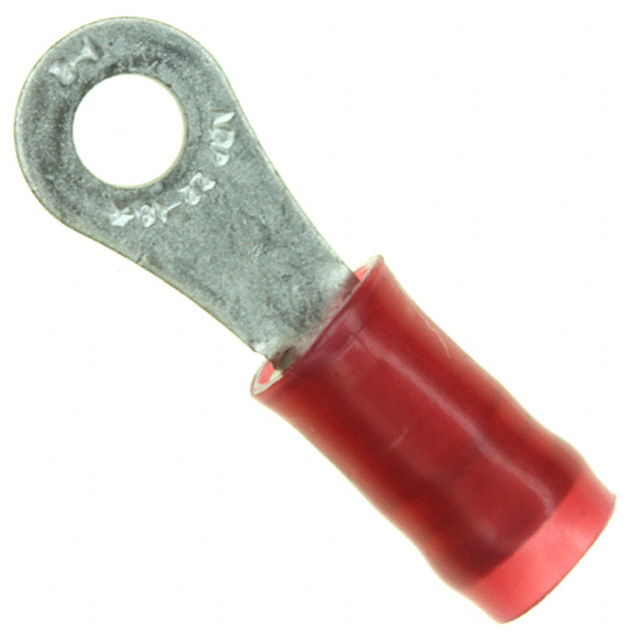

PIDG 22-16 22-18 MIL R 4; TAPE
| Part | Length - Overall [x] | Length - Overall [x] | Mounting Type | Color | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Features | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Thickness | Thickness | Contact Finish | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation | Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.844 " | 21.44 mm | Free Hanging (In-Line) | Red | Circular | 22 AWG | 16 AWG | Nylon Polyamide (PA) | Serrated Termination | 4 Stud | 0.25 " | 6.35 mm | 0.031 in | 0.79 mm | Tin | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | Insulated | Crimp | Copper |
