31-455 Series
Manufacturer: EAO
Beta
⌘K

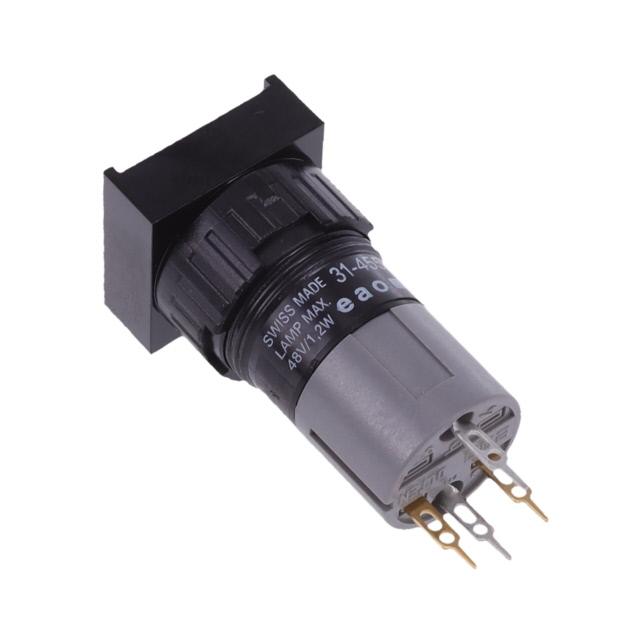

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, SPST-NO, MOMENTARY, SQUARE
| Part | Mechanical Life | Mounting Type | Circuit | Actuator Marking | Type | Voltage Rating - DC | Termination Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Switch Function | Actuator Type | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 5000000 Cycles | Panel Mount Front | SPST-NO | No Marking | Standard | 42 V | PC Pin Solder Lug | IP40 | 55 °C | -25 °C | 16 mm | Off-Mom | Button Square | 42 V | 100 mA |
