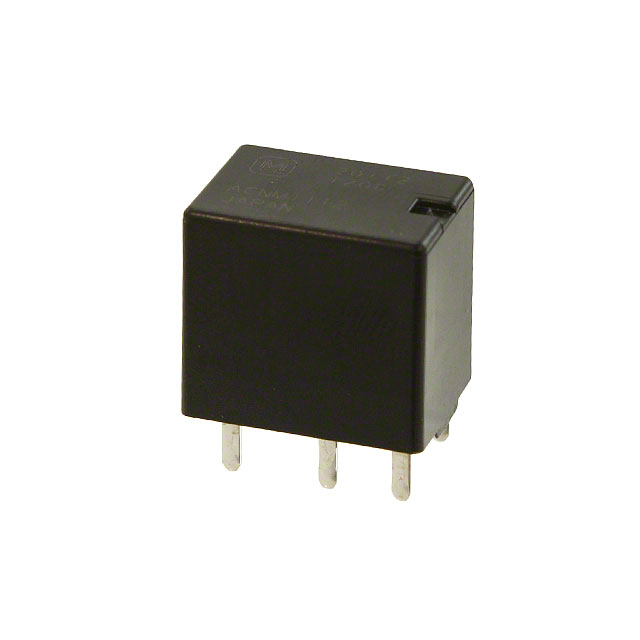

ACNM311 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
MIDDLE LOAD RELAY FOR SMART J/B
| Part | Contact Material | Coil Power | Coil Resistance | Release Time | Operate Time | Contact Rating (Current) | Coil Current | Mounting Type | Coil Voltage | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Must Operate Voltage | Termination Style | Contact Form | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Silver Alloy Cadmium Free | 640 mW | 225 Ohms | 10 ms | 10 ms | 30 A | 53.3 mA | Through Hole | 12 VDC | 1 VDC | 85 °C | -40 C | 14 VDC | 7.2 VDC | PC Pin | SPST-NO (1 Form A) | Non Latching |
