MP6505 Series

Catalog

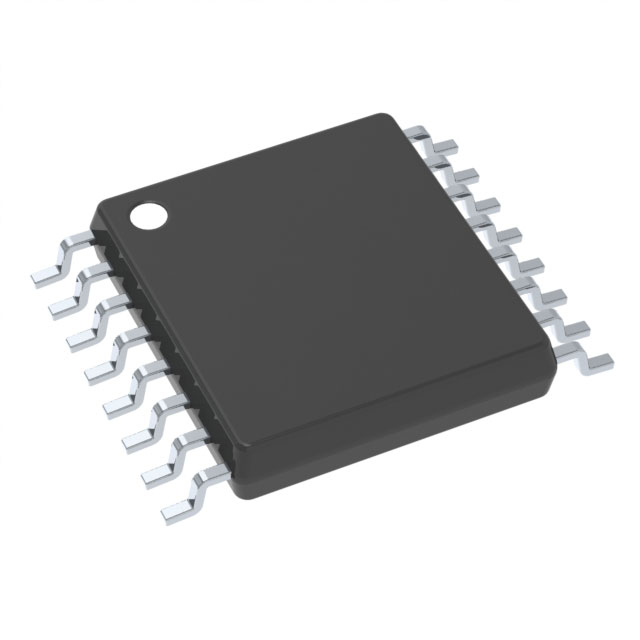

IC MOTOR DRIVER 4.5V-16V 16TSSOP

Part	Current - Output	Function	Interface	Applications	Output Configuration	Voltage - Load [Min]	Voltage - Load [Max]	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case [y]	Package / Case	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - AC, DC	Supplier Device Package
Monolithic Power Systems Inc. MP6505DM-LF-Z	400 mA	Driver - Fully Integrated Control and Power Stage	Parallel	General Purpose	Half Bridge (2)	4.5 V	16 V	Power MOSFET	4.5 V	16 V	Surface Mount	4.4 mm	16-TSSOP	0.173 in	-40 C	125 °C	Brushless DC (BLDC)	16-TSSOP
Monolithic Power Systems Inc. MP6505DM-LF	400 mA	Driver - Fully Integrated Control and Power Stage	Parallel	General Purpose	Half Bridge (2)	4.5 V	16 V	Power MOSFET	4.5 V	16 V	Surface Mount	4.4 mm	16-TSSOP	0.173 in	-40 C	125 °C	Brushless DC (BLDC)	16-TSSOP
Monolithic Power Systems Inc. MP6505DQ-LF-P	400 mA	Driver - Fully Integrated Control and Power Stage	Parallel	General Purpose	Half Bridge (2)	4.5 V	16 V	Power MOSFET	4.5 V	16 V	Surface Mount		16-VFQFN Exposed Pad		-40 C	125 °C	Brushless DC (BLDC)	16-QFN (3x3)
