RGS60NL65HRB Series

8μs Short-Circuit Tolerance, 650V 30A, Automotive Field Stop Trench IGBT

Catalog

8μs Short-Circuit Tolerance, 650V 30A, Automotive Field Stop Trench IGBT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max)	Gate Charge	Qualification	Supplier Device Package	Grade	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Package / Case	Switching Energy	IGBT Type	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Test Condition	Mounting Type

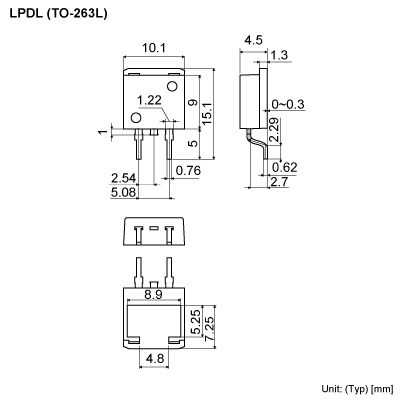

Rohm Semiconductor RGS60NL65HRBTL	-40 C	175 °C	650 V	36 nC	AEC-Q101	TO-263L	Automotive	59 A	228 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	650 µJ 790 µJ	Trench Field Stop	90 A	2.1 V	31 ns 94 ns	10 Ohm 15 V 30 A 400 V	Surface Mount

Catalog

8μs Short-Circuit Tolerance, 650V 30A, Automotive Field Stop Trench IGBT

Key Features

• Qualified to AEC-Q101, Low Collector - Emitter Saturation Voltage, Short Circuit Withstand Time 8μs, Pb - free Lead Plating ; RoHS Compliant

Description

RGS60NL65HRB is a 8μs SCSOA guaranteed IGBT, suitable for general inverter for automotive and industrial use. This product complies AEC-Q101 qualification.
