2805-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

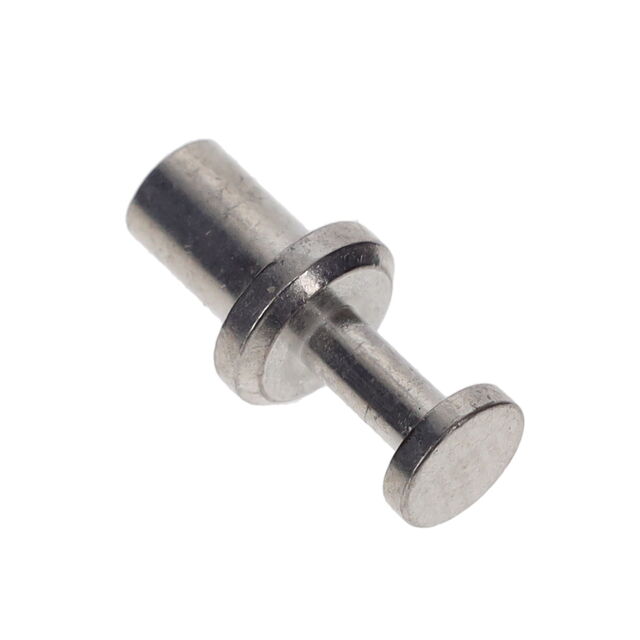

TERM TURRET SINGLE L=5.94MM
| Part | Board Thickness | Board Thickness | Length - Above Board [x] | Length - Above Board [x] | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Termination | Number of Turrets | Terminal Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Staking Side ID | Staking Side ID | Length - Below Flange [x] | Length - Below Flange [x] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Staking Side OD [diameter] | Staking Side OD [diameter] | Mounting Type | Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 3.18 mm | 0.125 " | 5.94 mm | 0.234 in | Brass Alloy | 0.116 in | 2.95 mm | 10.13 mm | 0.399 in | Swage | Single | Single End | 0.187 in | 4.75 mm | 0.078 in | 1.98 mm | 4.19 mm | 0.165 " | 3.68 mm | 0.145 " | 2.84 mm | 0.112 " | Through Hole | Non-Insulated | Tin-Lead | 200 Áin | 5.08 Ám |
 Mill-Max Manufacturing Corp. | 3.18 mm | 0.125 " | 5.94 mm | 0.234 in | Brass Alloy | 0.116 in | 2.95 mm | 10.13 mm | 0.399 in | Swage | Single | Single End | 0.187 in | 4.75 mm | 0.078 in | 1.98 mm | 4.19 mm | 0.165 " | 3.68 mm | 0.145 " | 2.84 mm | 0.112 " | Through Hole | Non-Insulated | Silver | 300 µin | 7.62 µm |
