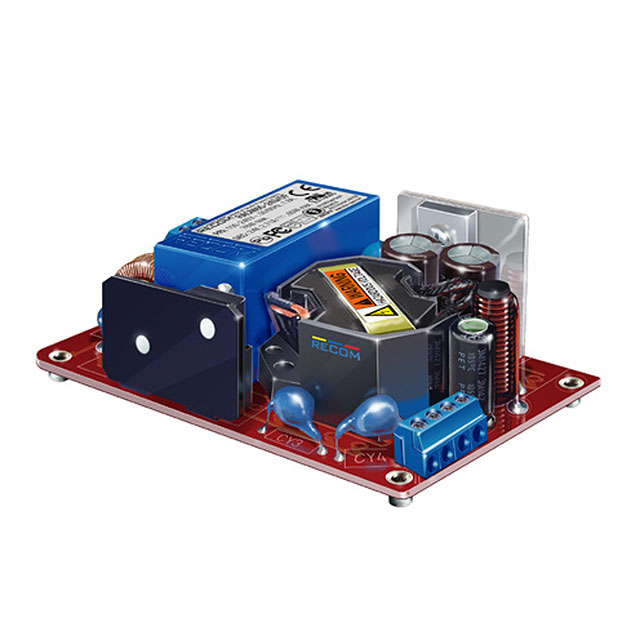

RACM65-S Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 15V 4.34A 65W 6-PIN BOX
| Part | Minimum Load Required | Features | Type | Voltage - Isolation | Applications | Approval Agency | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Current - Output 1 | Efficiency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Adjustable Output DC Input Capable Universal Input | Open Frame | 4000 V | Medical | CE cURus | 15 V | 3 " | 50.8 mm | 1.04 in | 76.2 mm | 2 in | 26.5 mm | -40 °C | 85 °C | 1 | 4.33 A | 93.5 % | Chassis Mount | |
 Recom Power | Adjustable Output DC Input Capable Universal Input | Open Frame | 4000 V | Medical | CE cURus | 15 V | 3 " | 50.8 mm | 1.04 in | 76.2 mm | 2 in | 26.5 mm | -40 °C | 85 °C | 1 | 4.33 A | 93.5 % | Chassis Mount | |
 Recom Power | Adjustable Output DC Input Capable Universal Input | Open Frame | 4000 V | Medical | CE cURus | 12 V | 3 " | 50.8 mm | 1.04 in | 76.2 mm | 2 in | 26.5 mm | -40 °C | 85 °C | 1 | 5.42 A | 92.5 % | Chassis Mount | |
 Recom Power | Adjustable Output DC Input Capable Universal Input | Open Frame | 4000 V | Medical | CE cURus | 5 V | 3 " | 50.8 mm | 1.04 in | 76.2 mm | 2 in | 26.5 mm | -40 °C | 85 °C | 1 | 10 A | 90 % | Chassis Mount | |
Recom Power | Adjustable Output DC Input Capable Universal Input | Open Frame | 4000 V | Medical | CE cURus | 5 V | 3 " | 50.8 mm | 1.04 in | 76.2 mm | 2 in | 26.5 mm | -40 °C | 85 °C | 1 | 10 A | 90 % | Chassis Mount | |
Recom Power | Adjustable Output DC Input Capable Universal Input | Open Frame | 4000 V | Medical | CE cURus | 24 V | 3 " | 50.8 mm | 1.04 in | 76.2 mm | 2 in | 26.5 mm | -40 °C | 85 °C | 1 | 2.71 A | 93.5 % | Chassis Mount | |
 Recom Power | Adjustable Output DC Input Capable Universal Input | Enclosed | 4000 V | Medical | CE cURus | 15 V | 3.6 " | 60.5 mm | 1.31 " | 91.4 mm | 2.38 in | 33.3 mm | -40 °C | 85 °C | 1 | 4.33 A | 93.5 % | Chassis Mount | |
Recom Power | Adjustable Output DC Input Capable Universal Input | Enclosed | 4000 V | Medical | CE cURus | 5 V | 3.6 " | 60.5 mm | 1.31 " | 91.4 mm | 2.38 in | 33.3 mm | -40 °C | 85 °C | 1 | 10 A | 90 % | Chassis Mount | |
Recom Power | Adjustable Output DC Input Capable Universal Input | Enclosed | 4000 V | Medical | CE cURus | 15 V | 3.6 " | 60.5 mm | 1.31 " | 91.4 mm | 2.38 in | 33.3 mm | -40 °C | 85 °C | 1 | 4.33 A | 93.5 % | Chassis Mount | |
 Recom Power | Adjustable Output DC Input Capable Universal Input | Enclosed | 4000 V | Medical | CE cURus | 12 V | 3.6 " | 60.5 mm | 1.31 " | 91.4 mm | 2.38 in | 33.3 mm | -40 °C | 85 °C | 1 | 5.42 A | 92.5 % | Chassis Mount |
