745-110 Series
Manufacturer: EDAC Inc.
Beta
⌘K

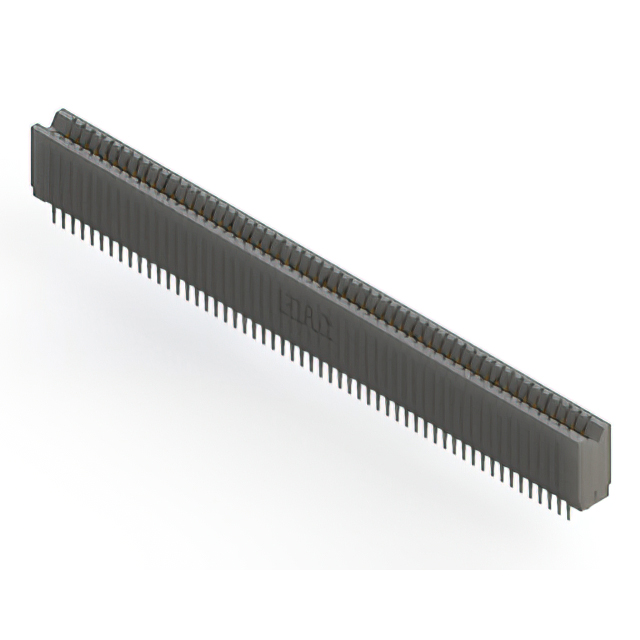

CONN EDGE DUAL FML 110POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Termination | Card Type | Contact Finish | Number of Positions | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Contact Type | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Read Out | Color | Gender | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever Make Before Break | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit Wire Wrap | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | Non Specified - Dual Edge | Gold | 110 | 2 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever Make Before Break | 0.1 " | 2.54 mm | -40 C | 105 ░C | 55 | Dual | Black | Female | Through Hole |
