TRAB806 Series

Catalog

RF ANT 850MHZ/900MHZ DOME NMO

Part	Frequency Range [Min]	Frequency Range [Max]	Frequency Range	Frequency Group	Number of Bands	Gain	Power - Max [Max]	VSWR	Mounting Type	Frequency (Center/Band)	Antenna Type	Termination	Applications	Height (Max) [z]	Height (Max) [z]	RF Family/Standard
TE Connectivity AMP Connectors TRAB806-17103	1.71 GHz 2.4 GHz 806 MHz	2.17 GHz 2.5 GHz 960 MHz	1.575 GHz	Wide Band	7	3 dBi 4.2 dBi 4.4 dBic 5.1 dBic 5.8 dB 5.9 dBi	100 W	2 2.5	Base Mount	1.575 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 900 MHz	Dome	NMO	AMPS DCS GPS GSM PCS UMTS	2.3 in	58.42 mm	Cellular General ISM

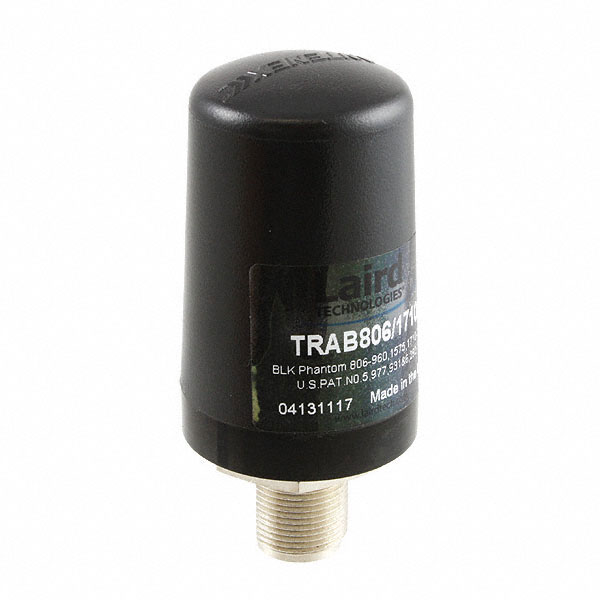

TE Connectivity AMP Connectors TRAB806-17103P	1.71 GHz 2.4 GHz 806 MHz	2.17 GHz 2.5 GHz 960 MHz	1.575 GHz	Wide Band	7	3 dBi 4.2 dBi 4.4 dBic 5.1 dBic 5.8 dB 5.9 dBi	100 W	2 2.5	Panel Mount	1.575 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 900 MHz	Dome	N Type Female	AMPS DCS GPS GSM PCS UMTS	2.3 in	58.42 mm	Cellular General ISM
TE Connectivity AMP Connectors TRAB806-17103	1.71 GHz 2.4 GHz 806 MHz	2.17 GHz 2.5 GHz 960 MHz	1.575 GHz	Wide Band	7	3 dBi 4.2 dBi 4.4 dBic 5.1 dBic 5.8 dB 5.9 dBi	100 W	2 2.5	Base Mount	1.575 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 900 MHz	Dome	NMO	AMPS DCS GPS GSM PCS UMTS	2.3 in	58.42 mm	Cellular General ISM
TE Connectivity AMP Connectors TRAB806-17103P	1.71 GHz 2.4 GHz 806 MHz	2.17 GHz 2.5 GHz 960 MHz	1.575 GHz	Wide Band	7	3 dBi 4.2 dBi 4.4 dBic 5.1 dBic 5.8 dB 5.9 dBi	100 W	2 2.5	Panel Mount	1.575 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 900 MHz	Dome	N Type Female	AMPS DCS GPS GSM PCS UMTS	2.3 in	58.42 mm	Cellular General ISM
