1415538 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

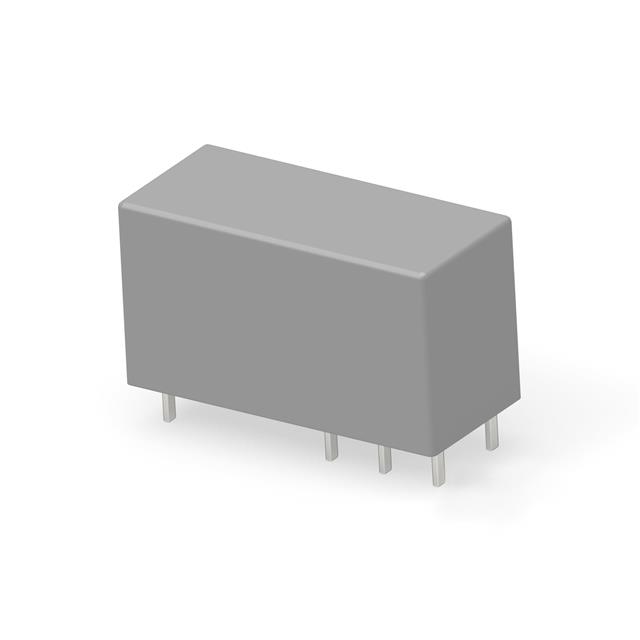

RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Resistance | Must Release Voltage | Approval Agency | Coil Insulation | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Coil Voltage | Contact Rating (Current) | Termination Style | Must Operate Voltage | Relay Type | Coil Type | Operate Time | Contact Material | Seal Rating | Release Time | Mounting Type | Contact Form | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1440 Ohms | 2.4 VDC | CQC CSA cURus VDE | Class F | 6400 VA | 85 °C | -40 C | 16.7 mA | 24 VDC | 16 A | PC Pin | 16.8 VDC | General Purpose | Non Latching | 8 ms | Silver Nickel (AgNi) | Sealed - Flux Protection | 6 ms | Through Hole | SPDT (1 Form C) | 400 VAC |
TE Connectivity AMP Connectors |
