ADP7159 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

2 A, ULTRALOW NOISE, HIGH PSRR, ADJUSTABLE OUTPUT, RF LINEAR REGULATOR

Part	Output Configuration	Voltage - Output (Min/Fixed)	Number of Regulators	Current - Supply (Max)	Mounting Type	Voltage - Output (Max)	Current - Output	Voltage - Input (Max)	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Control Features	Current - Quiescent (Iq)	Protection Features	Voltage Dropout (Max)	PSRR (Maximum)	PSRR (Minimum)	Package / Case	Package Width	Package Name	Package Length	Package Features	Supplied Contents	Board Type	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Type	Utilized IC / Part	Contents	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)
Analog Devices Inc./Maxim Integrated ADP7159ACPZ-02-R7	Positive	1.2 V	1	14 mA	Surface Mount	2.3 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	61 dB	45 dB	10-VFDFN Exposed Pad CSP	3 mm	10-LFCSP-WD	3 mm
Analog Devices Inc./Maxim Integrated ADP7159ACPZ-04-R2	Positive	1.2 V	1	14 mA	Surface Mount	3.3 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	68 dB	45 dB	10-VFDFN Exposed Pad CSP	3 mm	10-LFCSP-WD	3 mm
Analog Devices Inc./Maxim Integrated ADP7159ARDZ-01-R7	Positive	1.2 V	1	14 mA	Surface Mount	1.8 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	55 dB	40 dB		3.9 mm	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad
Analog Devices Inc./Maxim Integrated ADP7159ACPZ-01-R2	Positive	1.2 V	1	14 mA	Surface Mount	1.8 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	55 dB	40 dB	10-VFDFN Exposed Pad CSP	3 mm	10-LFCSP-WD	3 mm
Analog Devices Inc./Maxim Integrated ADP7159ARDZ-02-R7	Positive	1.2 V	1	14 mA	Surface Mount	2.3 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	61 dB	45 dB		3.9 mm	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad
Analog Devices Inc./Maxim Integrated ADP7159ACPZ-01-R7	Positive	1.2 V	1	14 mA	Surface Mount	1.8 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	55 dB	40 dB	10-VFDFN Exposed Pad CSP	3 mm	10-LFCSP-WD	3 mm
Analog Devices Inc./Maxim Integrated ADP7159ACPZ-03-R7	Positive	1.2 V	1	14 mA	Surface Mount	2.9 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	65 dB	45 dB	10-VFDFN Exposed Pad CSP	3 mm	10-LFCSP-WD	3 mm

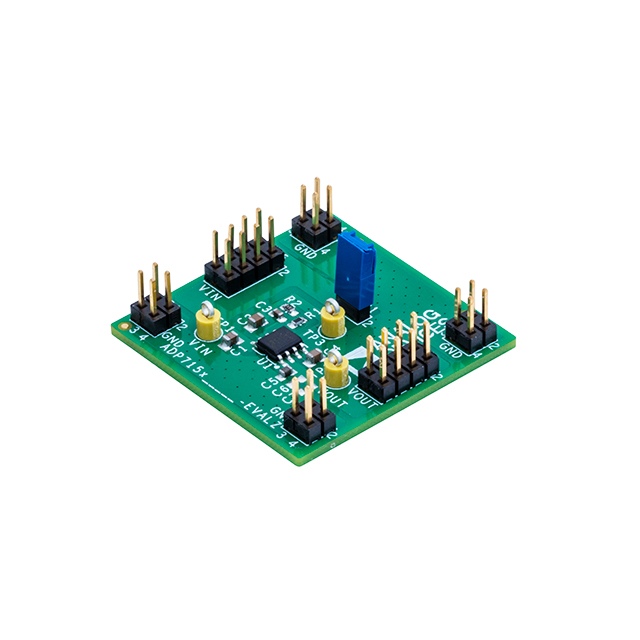

Analog Devices Inc./Maxim Integrated ADP7159RD-04-EVALZ							2 A																Board(s)	Fully Populated	2.3 V	5.5 V	Positive Adjustable	ADP7159	Board	1	Single	1
Analog Devices Inc./Maxim Integrated ADP7159ARDZ-03-R7	Positive	1.2 V	1	14 mA	Surface Mount	2.9 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	65 dB	45 dB		3.9 mm	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad
Analog Devices Inc./Maxim Integrated ADP7159ACPZ-04-R7	Positive	1.2 V	1	14 mA	Surface Mount	3.3 V	2 A	5.5 V	Adjustable	125 °C	-40 °C	Enable	8 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.28 V	68 dB	45 dB	10-VFDFN Exposed Pad CSP	3 mm	10-LFCSP-WD	3 mm
