1255AY Series

Catalog

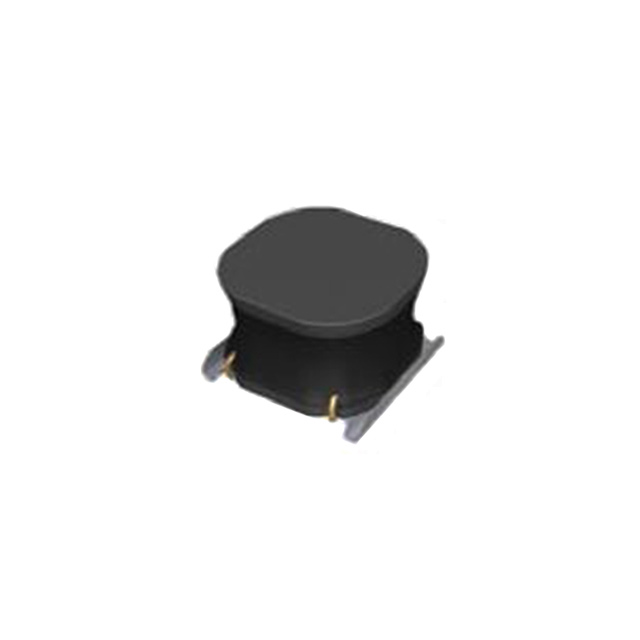

INDUCTOR, 10UH, 2.9A, 20%, WIREWOUND

Part	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Type	Current - Saturation (Isat)	Inductance Frequency - Test	Mounting Type	Package / Case	Tolerance	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]
Murata Electronics 1255AY-100M=P3	10 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	2.9 A	Drum Core Wirewound	3.1 A	100 kHz	Surface Mount	Nonstandard	20 %
Murata Electronics 1255AY-3R9N=P3	3.9 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	4.2 A	Drum Core Wirewound	4.7 A	100 kHz	Surface Mount	Nonstandard	30 %	22 mOhm	85 °C	-40 C
Murata Electronics 1255AY-270M=P3	27 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	1.8 A	Drum Core Wirewound	1.8 A	100 kHz	Surface Mount	Nonstandard	20 %	135 mOhm
Murata Electronics 1255AY-3R3N=P3	3.3 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	4.4 A	Drum Core Wirewound	5.2 A	100 kHz	Surface Mount	Nonstandard	30 %	21 mOhm
Murata Electronics 1255AY-2R7N=P3	2.7 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	4.6 A	Drum Core Wirewound	5.6 A	100 kHz	Surface Mount	Nonstandard	30 %	18 mOhm
Murata Electronics 1255AY-101M=P3	100 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	900 mA	Drum Core Wirewound	900 mA	100 kHz	Surface Mount	Nonstandard	20 %	460 mOhm
Murata Electronics 1255AY-470M=P3	47 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	1.3 A	Drum Core Wirewound	1.4 A	100 kHz	Surface Mount	Nonstandard	20 %	210 mOhm
Murata Electronics 1255AY-1R8N=P3	1.8 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	5.3 A	Drum Core Wirewound	6.8 A	100 kHz	Surface Mount	Nonstandard	30 %	14 mOhm
Murata Electronics 1255AY-220M=P3	22 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	1.9 A	Drum Core Wirewound	2 A	100 kHz	Surface Mount	Nonstandard	20 %	98 mOhm
Murata Electronics 1255AY-680M=P3	68 µH	4.5 mm	0.177 in	Shielded	Ferrite	0.248 in	0.248 in	6.3 mm	6.3 mm	1 A	Drum Core Wirewound	1.2 A	100 kHz	Surface Mount	Nonstandard	20 %	310 mOhm
