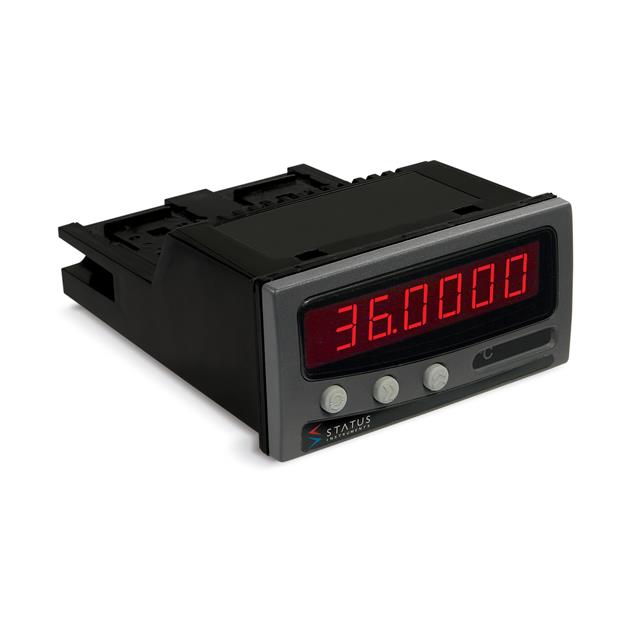

DM3600U Series
Manufacturer: Status Instruments Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DIGITAL PANEL METER
| Part | Output Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Relay (Count) | Type | Ingress Protection IP Rating | Ingress Protection Description | Measuring Range (Voltage) Minimum | Measuring Range (Voltage) Maximum | Measuring Range (Temperature) Maximum | Measuring Range (Temperature) Minimum | Measuring Range (Current) Maximum | Measuring Range (Current) Minimum | Measuring Type | Termination Style | Mounting Type | Number of Characters Per Row | Features | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Analog (Count) | Display Type | Display Characters - Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Status Instruments Ltd | Analog Relay | -30 °C | 60 °C | 250 VAC 264 VAC | 9 VDC 100 VAC | 2 4 | Multifunction Meter(Current Process Temperature Meter Temperature) Voltage | IP65 | Dust Tight Water Resistant | -10 V | 10 V | 1820 °C | -210 °C | 0.02 A | -0.02 A | Process RTD Thermocouple | Screw Terminal | Panel Mount | 6 characters | Excitation Supply Option Cards Available | 45 mm | Rectangular | 92 mm | 2 | LED - Red Characters | 0.591 in |
