LXW Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Polarization	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max)
Rubycon 400LXW68MEFR10X45	Can Radial	Through Hole	0.197 "	5 mm	0.394 in	10 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	1.342 A	610 mA	1.85 in	47 mm	68 µF	400 V
Rubycon 400LXW82MEFR12.5X40	Can Radial	Through Hole	0.197 "	5 mm	0.492 in	12.5 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	1.54 A	700 mA			0.082 mF	400 V	42 mm	1.654 in

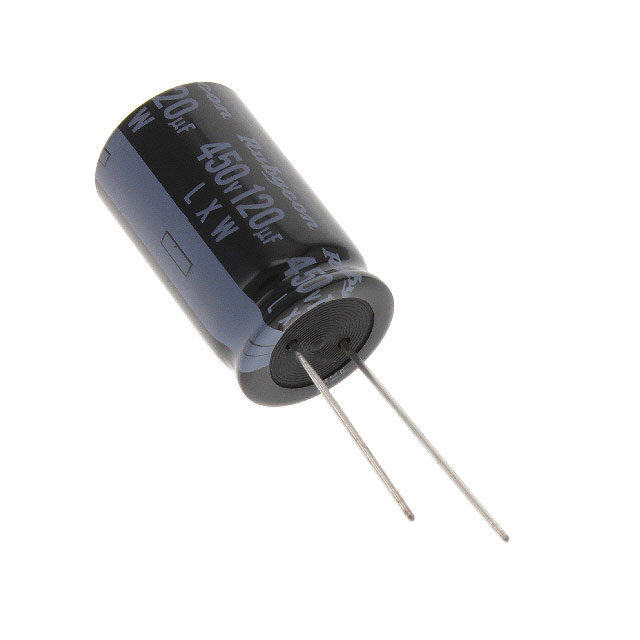

Rubycon 450LXW120MEFR18X30	Can Radial	Through Hole	0.295 in	7.5 mm	0.709 in	18 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	1.6 A	800 mA			120 µF	450 V	32 mm	1.26 in
Rubycon 400LXW56MEFR16X20	Can Radial	Through Hole	0.295 in	7.5 mm	0.63 in	16 mm	20 %	Polar	10000 Hrs	-40 C	105 ░C	General Purpose	1.144 A	520 mA			56 µF	400 V			0.866 in	22 mm
Rubycon 400LXW47MEFR12.5X25	Can Radial	Through Hole	0.197 "	5 mm	0.492 in	12.5 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	1.012 A	460 mA	1.063 in	27 mm	47 µF	400 V
Rubycon 450LXW68MEFR10X55	Can Radial	Through Hole	0.197 "	5 mm	0.394 in	10 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	1.342 A	610 mA	2.244 "	57 mm	68 µF	450 V
Rubycon 500LXW18MEFR12.5X25	Can Radial	Through Hole	0.197 "	5 mm	0.492 in	12.5 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	638 mA	290 mA	1.063 in	27 mm	18 µF	500 V
Rubycon 420LXW47MEFR10X35	Can Radial	Through Hole	0.197 "	5 mm	0.394 in	10 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	968 mA	440 mA			47 µF	420 V		1.457 in			37 mm
Rubycon 450LXW47MEFR10X40	Can Radial	Through Hole	0.197 "	5 mm	0.394 in	10 mm	20 %	Polar	12000 Hrs	-40 C	105 ░C	General Purpose	1.012 A	460 mA			47 µF	450 V	42 mm	1.654 in

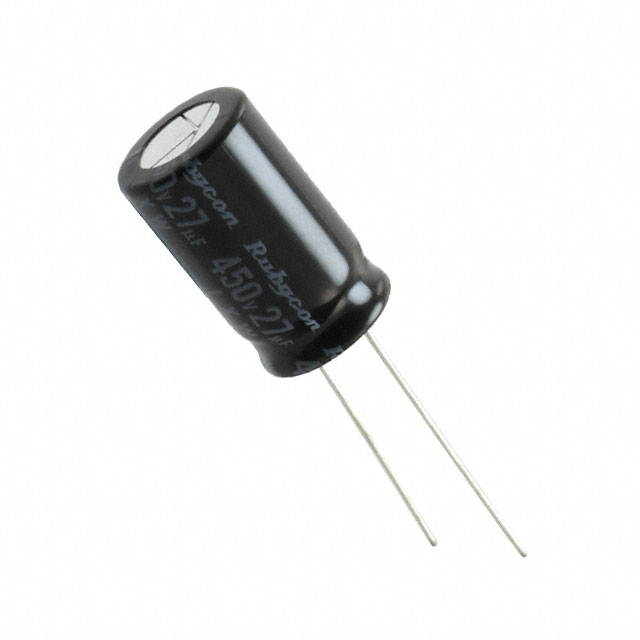

Rubycon 450LXW27MEFR12.5X20	Can Radial	Through Hole	0.197 "	5 mm	0.492 in	12.5 mm	20 %	Polar	10000 Hrs	-40 C	105 ░C	General Purpose	682 mA	310 mA			27 µF	450 V			0.866 in	22 mm
