ESH107M Series

Manufacturer: KEMET

Catalog

CAP, 100ΜF, 200V, 20% ROHS COMPLIANT: YES

Part	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Rated	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Capacitance	Ripple Current @ Low Frequency	Polarization	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max)

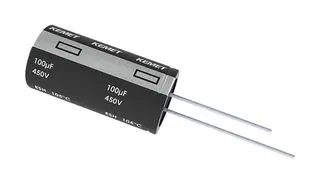

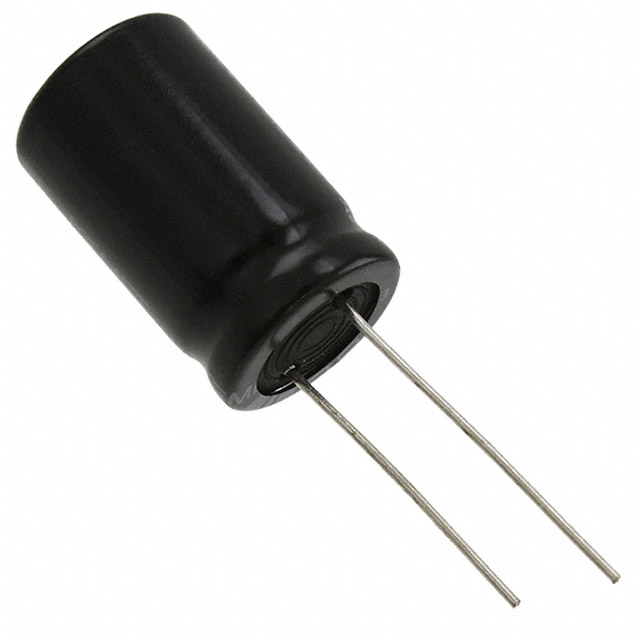

KEMET ESH107M200AM7AA	560 mA	105 ░C	-25 °C	Can Radial	200 VDC	20 %	0.63 in	16 mm	Through Hole	100 µF	350 mA	Polar	General Purpose	1.063 in	27 mm	2000 Hrs	0.295 in	7.5 mm
KEMET ESH107M010AC3AA	165 mA	105 ░C	-40 C	Can Radial	10 V	20 %	0.197 in	5 mm	Through Hole	100 µF	110 mA	Polar	General Purpose		0.492 in	2000 Hrs	0.079 in	2 mm	12.5 mm
KEMET ESH107M063AH9AA	390 mA	105 ░C	-40 C	Can Radial	63 V	20 %	0.394 in	10 mm	Through Hole	100 µF	260 mA	Polar	General Purpose	0.551 in	14 mm	2000 Hrs	0.197 "	5 mm

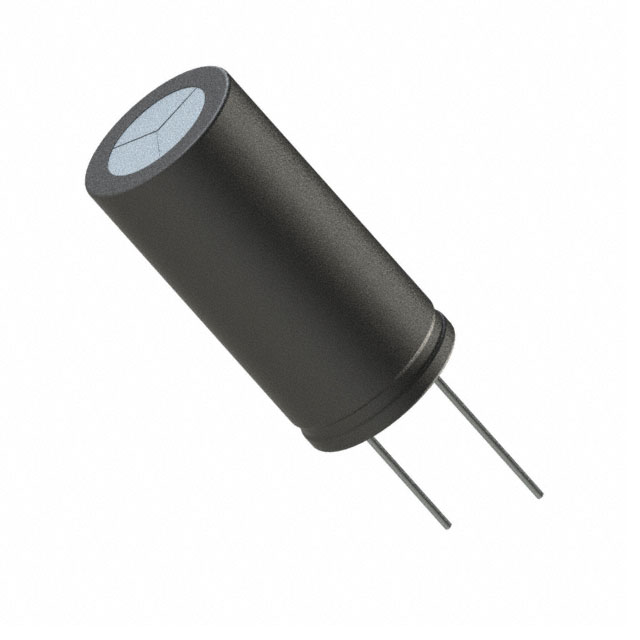

KEMET ESH107M450AN2AA	792 mA	105 ░C	-25 °C	Can Radial	450 V	20 %	0.709 in	18 mm	Through Hole	100 µF	495 mA	Polar	General Purpose	1.496 in		2000 Hrs	0.295 in	7.5 mm		38 mm
