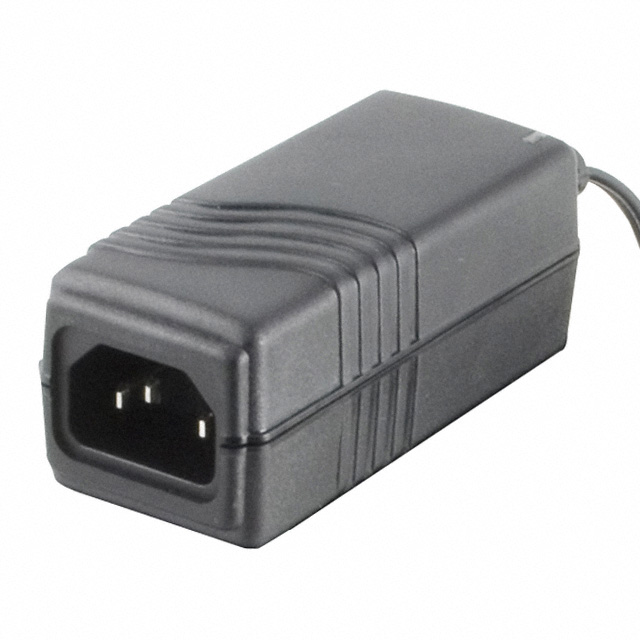

AEL15-80 Series

Manufacturer: XP Power

Catalog

DESKTOP AC ADAPTERS POWER SUPPLY, 80 WATT SWITCHER, DESKTOP

Part	Weight [custom]	Weight [custom]	Form	Applications	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Input Type	Output Connector	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Voltage - Output	Output Connector [diameter]	Output Connector [x]	Polarization

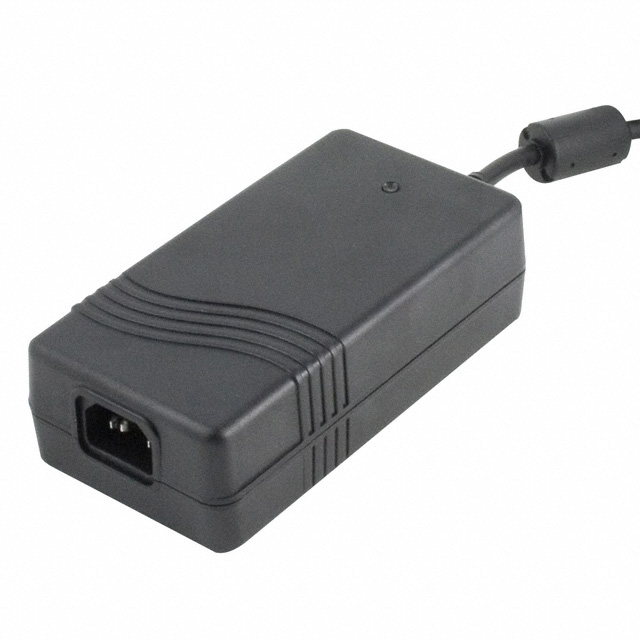

XP Power AEL80US36	680.4 g	1.5 lbs	Desktop (Class I)	ITE (Commercial)	1.22 m	48 in	-20 ░C	60 °C	2.22 A	Level V	80 W	CB TUV UL	2.99 in	76 mm	5.75 in	1.69 in	146 mm	43 mm	500 mW	Cord (Sold Separately)	DIN 5 Pin	IEC 320-C14	264 VAC	90 VAC	International	36 V
XP Power AEL15US48	165.11 g	0.364 lb	Desktop (Class I)	ITE (Commercial)	1.22 m	48 in	-20 ░C	60 °C	310 mA	Level IV	15 W	CB TUV UL	1.5 "	38 mm	3.58 in	1.42 "	91 mm	36 mm	500 mW	Cord (Sold Separately)	Barrel Plug	IEC 320-C14	264 VAC	90 VAC	International	48 V	2.5 mm 5.5 mm	11 mm	Positive Center

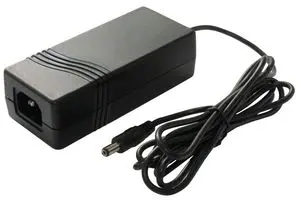

XP Power AEL80US24	680.4 g	1.5 lbs	Desktop (Class I)	ITE (Commercial)	1.22 m	48 in	-20 ░C	60 °C	3.33 A	Level V	80 W	CB TUV UL	2.99 in	76 mm	5.75 in	1.69 in	146 mm	43 mm	500 mW	Cord (Sold Separately)	DIN 5 Pin	IEC 320-C14	264 VAC	90 VAC	International	24 V
