PE0S0S Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Approval Agency	Mounting Type	Voltage Rating - Appliance Inlet	Current Rating - Filter	Filter Type	Switch Features	Connector Type	Features	Connector Style	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions
TE Connectivity Corcom Filters PE0S0SZ6C	55.91 mm	29.21 mm	Quick Connect	0.187 "	4.7 mm	Fuse Holder	6 A	CSA UL VDE	Flange Panel Mount	120 VAC	6 A	Filtered (EMI RFI) - Commercial	Switch On-Off	Receptacle Male Blades - Module	Conversion Clip	IEC 320-C14

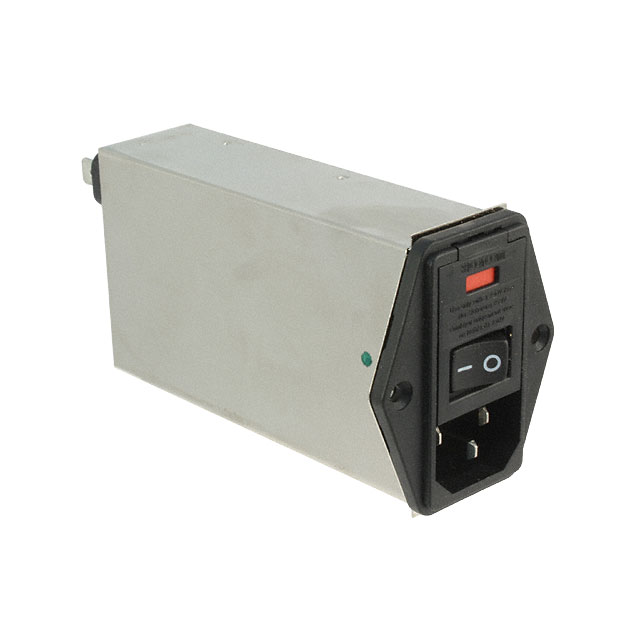

TE Connectivity Corcom Filters PE0S0SZXC	55.91 mm	29.21 mm	Quick Connect	0.187 "	4.7 mm	Fuse Holder	10 A	CSA UL VDE	Flange Panel Mount	120 VAC	10 A	Filtered (EMI RFI) - Commercial	Switch On-Off	Receptacle Male Blades - Module	Conversion Clip	IEC 320-C14
TE Connectivity Corcom Filters PE0S0SL6C	55.91 mm	29.21 mm	Quick Connect	0.187 "	4.7 mm	Fuse Holder	6 A	CSA UL VDE	Flange Panel Mount	120 VAC	6 A	Filtered (EMI RFI) - Commercial	Switch On-Off	Receptacle Male Blades - Module	Conversion Clip	IEC 320-C14
TE Connectivity Corcom Filters PE0S0SS30			Quick Connect	0.187 "	4.7 mm	Fuse Holder	3 A	CSA UL VDE	Flange Panel Mount	120 VAC	3 A	Filtered (EMI RFI) - Commercial	Switch On-Off	Receptacle Male Blades - Module	Conversion Clip	IEC 320-C14	0.79 mm	2.9 mm	0.031 "	0.114 in	Variable Size
