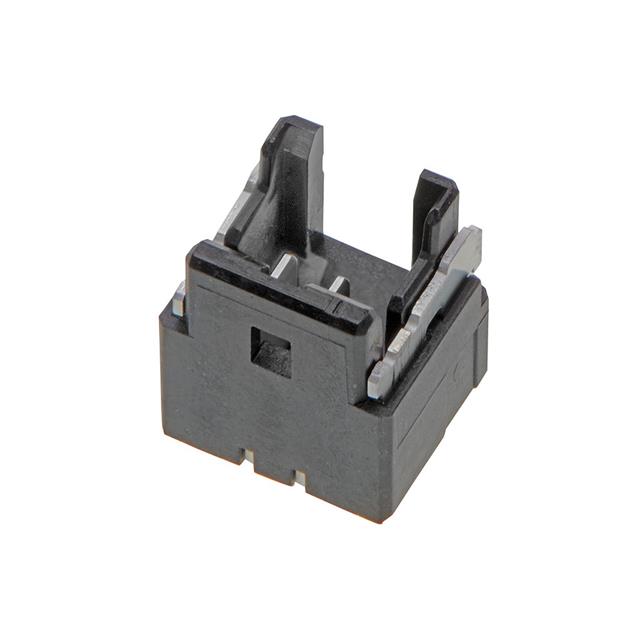

OneBlade Header, 1.00mm Pitch, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 5 Circuits, Tape and Reel
OneBlade Header, 1.00mm Pitch, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 5 Circuits, Tape and Reel
OneBlade Header, 1.00mm Pitch, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 5 Circuits, Tape and Reel
| Part | Insulation Material | Fastening Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height [z] | Termination | Contact Finish - Post | Contact Shape | Voltage Rating | Mounting Type | Insulation Color | Material Flammability Rating | Number of Positions | Number of Rows | Style | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Glass Filled Nylon Polyamide (PA) | Friction Lock | Male Blade | -40 °C | 105 ░C | Brass | Shrouded - 3 Wall | 1 µm | 39.4 µin | Solder Retention | Varies by Wire Gauge | 0.039 in | 1 mm | All | 1 çm | 39.4 çin | 5.4 mm | 0.213 in | Solder | Tin | Rectangular | 100 VAC | Surface Mount | Black | UL94 V-0 | 2 | 1 | Board to Cable/Wire | Header |
 Molex | Glass Filled Nylon Polyamide (PA) | Friction Lock | Male Blade | -40 °C | 105 ░C | Brass | Shrouded - 3 Wall | 1 µm | 39.4 µin | Solder Retention | Varies by Wire Gauge | 0.039 in | 1 mm | All | 1 çm | 39.4 çin | 5.4 mm | 0.213 in | Solder | Tin | Rectangular | 100 VAC | Surface Mount | Black | UL94 V-0 | 8 | 1 | Board to Cable/Wire | Header |
 Molex | Glass Filled Nylon Polyamide (PA) | Friction Lock | Male Blade | -40 °C | 105 ░C | Brass | Shrouded - 3 Wall | 1 µm | 39.4 µin | Solder Retention | Varies by Wire Gauge | 0.039 in | 1 mm | All | 1 çm | 39.4 çin | 5.4 mm | 0.213 in | Solder | Tin | Rectangular | 100 VAC | Surface Mount | Black | UL94 V-0 | 1 | Board to Cable/Wire | Header | |
 Molex | Glass Filled Nylon Polyamide (PA) | Friction Lock | Male Blade | -40 °C | 105 ░C | Brass | Shrouded - 3 Wall | 1 µm | 39.4 µin | Solder Retention | Varies by Wire Gauge | 0.039 in | 1 mm | All | 1 çm | 39.4 çin | 5.4 mm | 0.213 in | Solder | Tin | Rectangular | 100 VAC | Surface Mount | Black | UL94 V-0 | 4 | 1 | Board to Cable/Wire | Header |
Molex | Glass Filled Nylon Polyamide (PA) | Friction Lock | Male Blade | -40 °C | 105 ░C | Brass | Shrouded - 3 Wall | 1 µm | 39.4 µin | Solder Retention | Varies by Wire Gauge | 0.039 in | 1 mm | All | 1 çm | 39.4 çin | 5.4 mm | 0.213 in | Solder | Tin | Rectangular | 100 VAC | Surface Mount | Black | UL94 V-0 | 6 | 1 | Board to Cable/Wire | Header |
