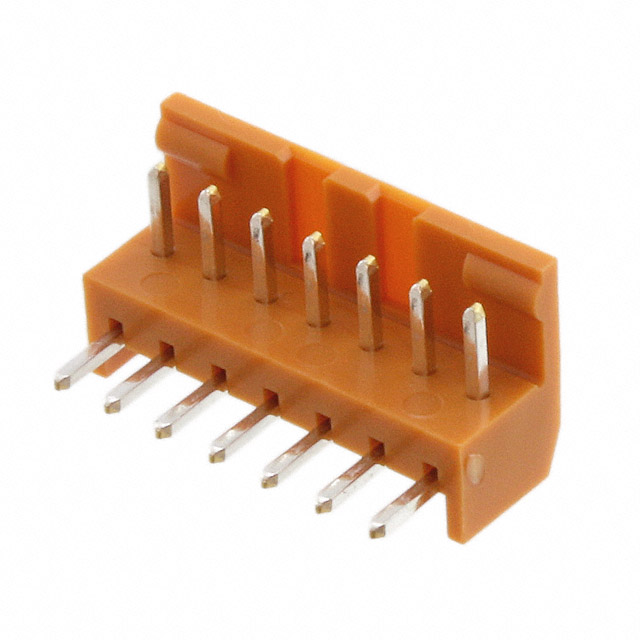

IL-G-7P Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER VERT 7POS 2.5MM
| Part | Mated Stacking Heights | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Contact Material | Contact Shape | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Number of Positions Loaded | Insulation Height | Insulation Height | Connector Type | Insulation Color | Contact Type | Number of Positions | Style | Contact Length - Post | Contact Length - Post | Insulation Material | Termination | Current Rating (Amps) | Shrouding | Mounting Type | Fastening Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Insulation Height [custom] | Insulation Height [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 10 mm | 9.6 mm | 0.378 in | 2.5 mm | 0.098 in | Brass | Square | 1 | 4 mm | 0.157 in | Tin | All | 0.28 in | 7.1 mm | Header | Brown | Male Pin | 7 | Board to Cable/Wire | 0.138 in | 3.5 mm | Nylon 6/6 Polyamide (PA66) | Solder | 3 A | Shrouded - 1 Wall | Through Hole | Friction Lock | UL94 V-0 | 85 °C | -40 C | |||||
 JAE Electronics | 10 mm | 9.6 mm | 0.378 in | 2.5 mm | 0.098 in | Brass | Square | 1 | 4 mm | 0.157 in | All | 0.28 in | 7.1 mm | Header | Brown | Male Pin | 7 | Board to Cable/Wire | 0.138 in | 3.5 mm | Nylon 6/6 Polyamide (PA66) | Solder | 3 A | Shrouded - 1 Wall | Through Hole | Friction Lock | UL94 V-0 | 85 °C | -40 C | 3.9 µin | 0.099 µm | Gold | |||
 JAE Electronics | 2.5 mm | 0.098 in | Brass | Square | 1 | 4 mm | 0.157 in | Tin | All | Header | Brown | Male Pin | 7 | Board to Cable/Wire | 0.138 in | 3.5 mm | Nylon 6/6 Polyamide (PA66) | Solder | 3 A | Shrouded - 1 Wall | Right Angle Through Hole | Friction Lock | UL94 V-0 | 85 °C | -40 C | 0.236 " | 6 mm |
