156-00 Series

Catalog

CABLE TIE, NYLON 6.6 HS (POLYAMIDE 6.6 HS) (HEAT STABILISED), BLACK, 150 MM, 4.6 MM, 35 MM, 50 LB

Part	Length - Approximate	Width [x]	Width [x]	Tensile Strength	Tensile Strength	Color	Features	Material	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Wire/Cable Tie Type	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Mounting Type	Length - Actual	Length - Actual	Length - Actual	Bundle Diameter [diameter]	Width [y]	Width [y]	Width

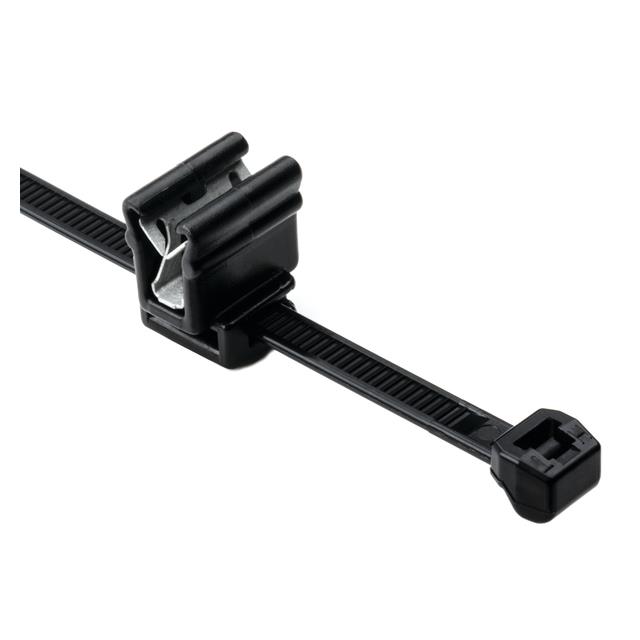

HELLERMANNTYTON 156-00858	6 in	4.6 mm	0.181 in	22.68 kg	50 lbs	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6	5.91 "	0.492 ft	150 mm	Locking Standard	1.22 in	31 mm	Edge Clip

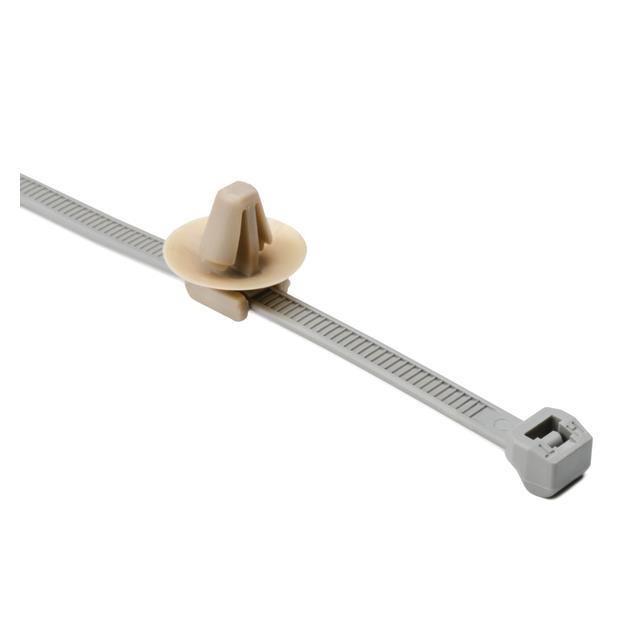

HELLERMANNTYTON 156-00456	8 in	4.57 mm	0.18 in	22.68 kg	50 lbs	Gray		Nylon 4/6 Polyamide (PA46)				Locking Standard	1.8 "	45.72 mm	Arrowhead Push Mount	7.9 in	200.66 mm	0.658 ft

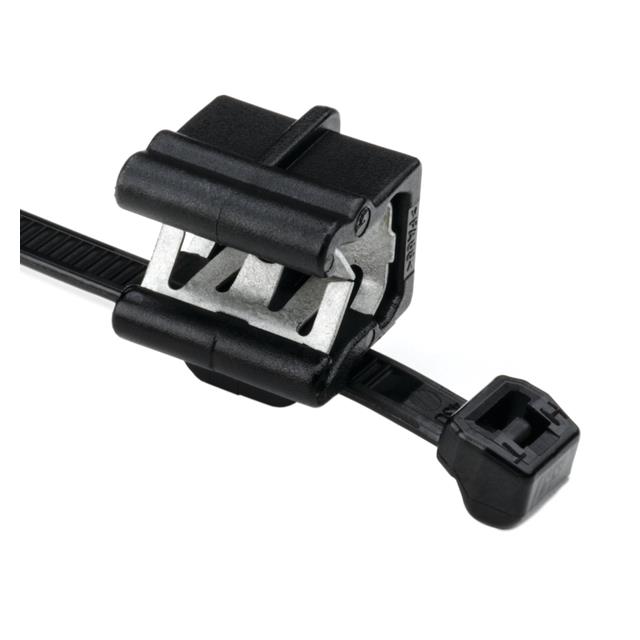

HELLERMANNTYTON 156-00878	7.75 "	4.6 mm	0.181 in	22.68 kg	50 lbs	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6	7.87 "	0.656 ft	200 mm	Locking Standard	1.77 in	45 mm	Edge Clip

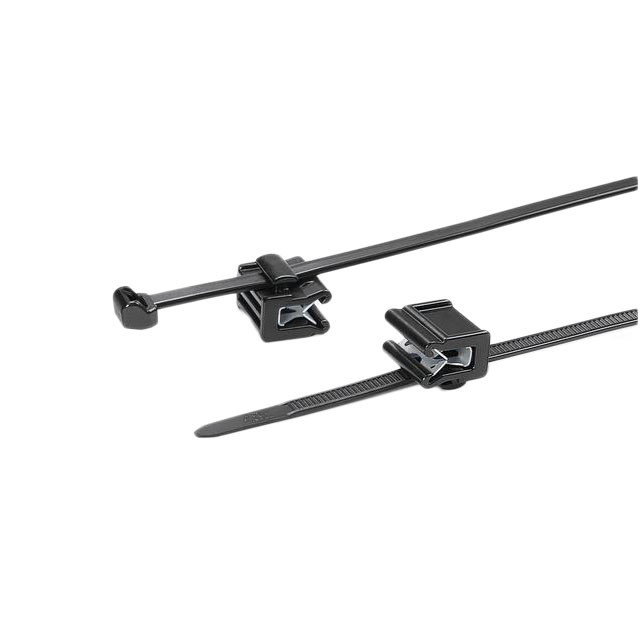

HELLERMANNTYTON 156-00874	7.75 "	4.6 mm	0.181 in	22.68 kg	50 lbs	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6	7.87 "	0.656 ft	200 mm	Locking Standard	1.77 in	45 mm	Edge Clip
HELLERMANNTYTON 156-00540	8 in	4.6 mm	0.181 in	22.68 kg	50 lbs	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6	7.95 in	0.663 ft	202 mm	Locking Standard	1.77 in	45 mm	Edge Clip

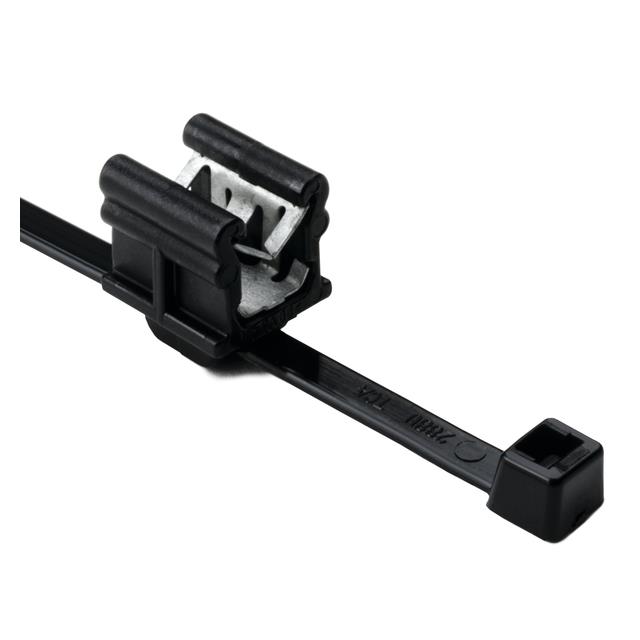

HELLERMANNTYTON 156-00537	7.75 "	4.6 mm	0.181 in	22.68 kg	50 lbs	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6	7.87 "	0.656 ft	200 mm	Locking Standard	1.77 in	45 mm	Edge Clip

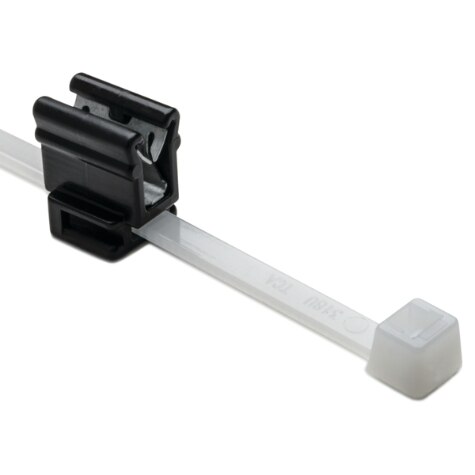

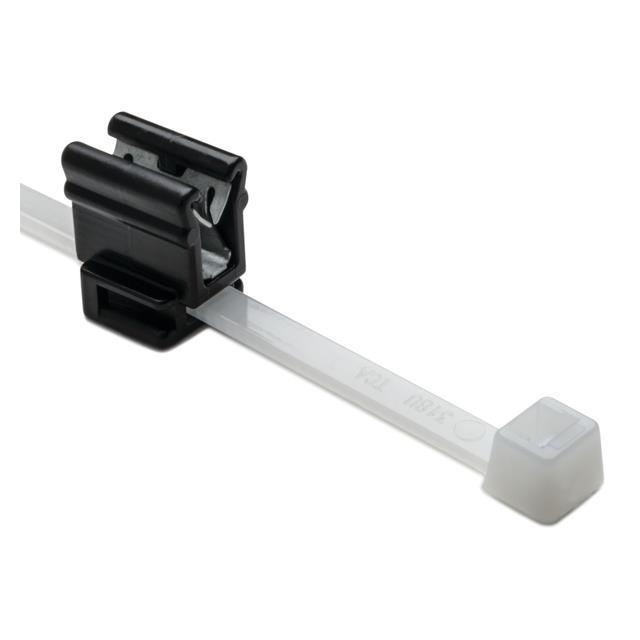

HELLERMANNTYTON 156-00940	8 in	4.57 mm	0.18 in	22.68 kg	50 lbs	Natural		Polyamide (PA66) Nylon 6/6				Locking Standard		2 in	Edge Clip	8 in	203.2 mm	0.667 ft	50.8 mm
HELLERMANNTYTON 156-00864	7.75 "	4.6 mm	0.181 in	22.68 kg	50 lbs	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6	7.87 "	0.656 ft	200 mm	Locking Standard	1.77 in	45 mm	Edge Clip

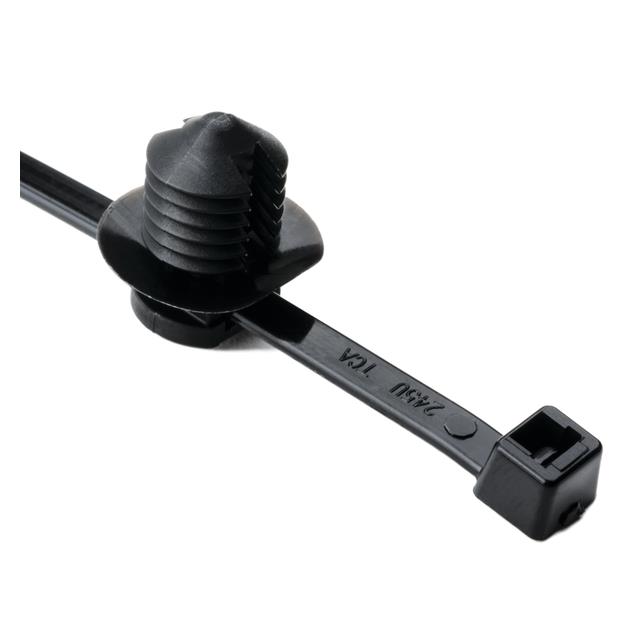

HELLERMANNTYTON 156-00093	15 in			22.68 kg	50 lbs	Black	Heat Stabilized Impact Modified UV Resistant	Polyamide (PA66) Nylon 6/6				Locking Standard	4.33 in	110 mm	Fir Tree Push Mount					0.185 in	4.7 mm
HELLERMANNTYTON 156-00067	15 in		0.3 in	54.43 kg	120 lbs	Black	Heat Stabilized	Polyamide (PA66) Nylon 6/6				Locking Standard	3.94 in	100 mm	Fir Tree Push Mount							7.62 mm
