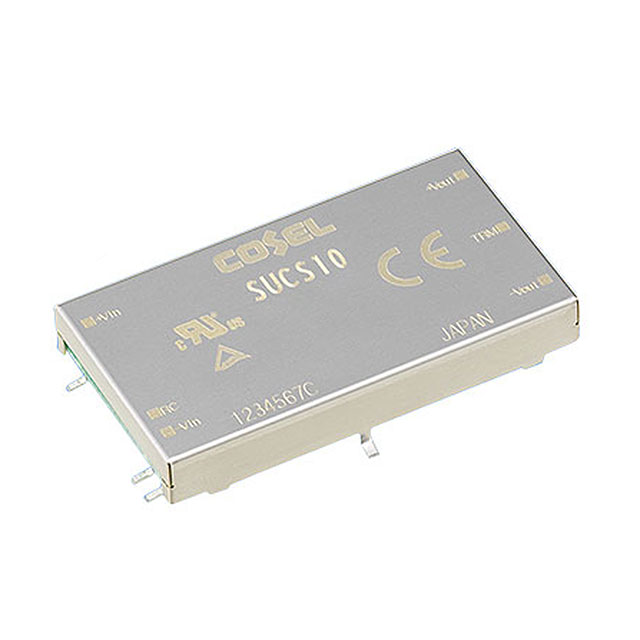

SUCS100505 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 5V 10W
| Part | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Voltage - Input (Min) [Min] | Mounting Type | Power (Watts) | Current - Output (Max) [Max] | Type | Voltage - Output 1 | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Voltage - Input (Max) [Max] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 6-SMD Module | 0.85 in | 21.5 mm | 0.28 " | 1.58 inches | 40.2 mm | 7 mm | 83 % | 4.5 V | Surface Mount | 10 W | 2 A | Isolated Module | 5 V | ITE (Commercial) | -40 °C | 85 °C | 500 V | 9 V | 1 |
 Cosel USA, Inc. | 6-DIP Module | 0.85 in | 21.5 mm | 0.28 " | 1.58 inches | 40.2 mm | 7 mm | 83 % | 4.5 V | Through Hole | 10 W | 2 A | Isolated Module Conformal Coated | 5 V | ITE (Commercial) | -40 °C | 85 °C | 500 V | 9 V | 1 |
