HFW4R Series

Catalog

CONN FFC FPC BOTTOM 4POS 1MM R/A

Part	Housing Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Termination	FFC, FCB Thickness	Connector/Contact Type	Pitch	Pitch	Contact Material	Flat Flex Type	Cable End Type	Number of Positions	Housing Material	Mounting Type	Contact Finish	Voltage Rating	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Features

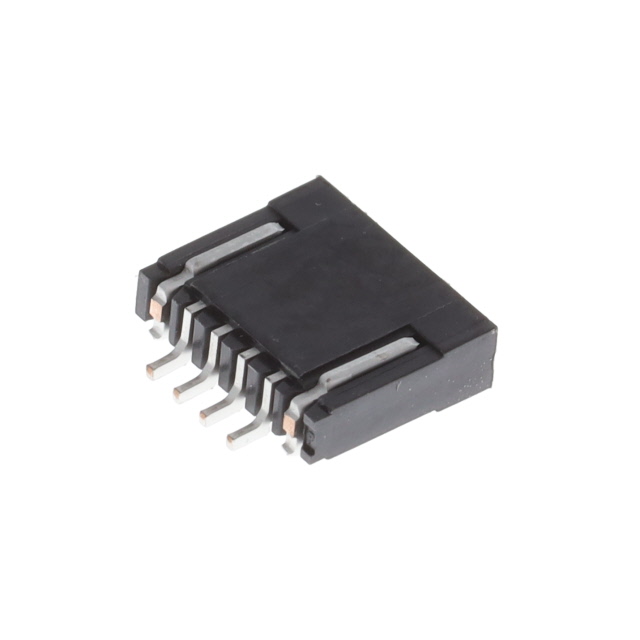

Amphenol ICC (FCI) HFW4R-1STE9LF	Black	30	-55 C	105 ░C	Solder	0.3 mm	Contacts Bottom	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Straight or Tapered	4	Glass Filled Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	Tin	100 V	UL94 V-0	1.9 mm	0.075 in
Amphenol ICC (FCI) HFW4R-1STNE1LF							Contacts Bottom				FFC FPC		4

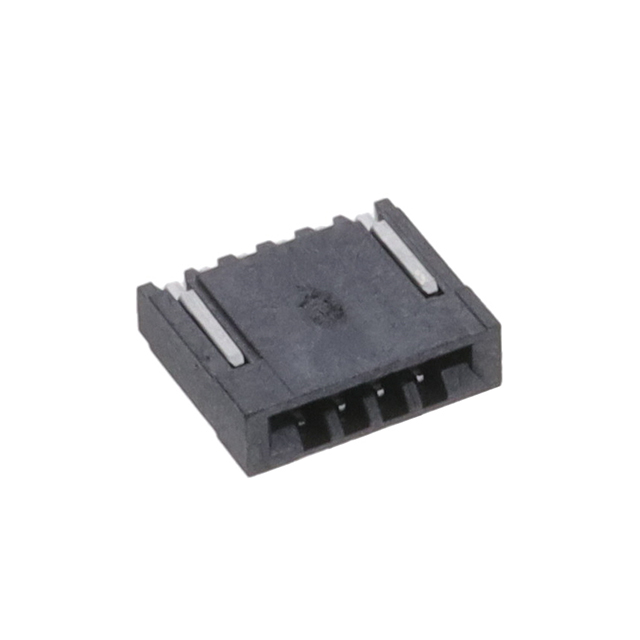

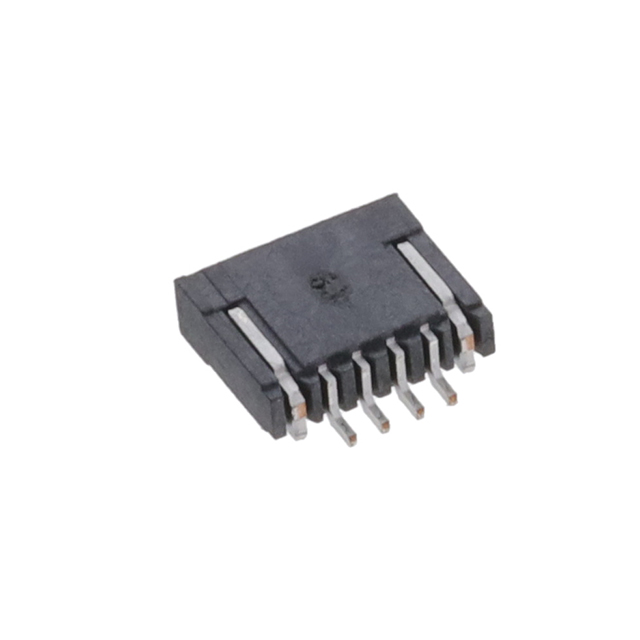

Amphenol ICC (FCI) HFW4R-2STE1H1LF	Black	30	-55 C	105 ░C	Solder	0.3 mm	Contacts Top	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Straight or Tapered	4	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount	Tin	100 V	UL94 V-0	1.9 mm	0.075 in
Amphenol ICC (FCI) HFW4R-1STE1HLF	Black	30	-55 C	105 ░C	Solder	0.3 mm	Contacts Bottom	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Straight or Tapered	4	Glass Filled Halogen Free Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	Tin	100 V	UL94 V-0	1.9 mm	0.075 in
Amphenol ICC (FCI) HFW4R-1STZE1H1LF	Black	30	-55 C	105 ░C	Solder	0.3 mm	Contacts Bottom	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Straight or Tapered	4	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount	Tin	100 V	UL94 V-0	1.9 mm	0.075 in
Amphenol ICC (FCI) HFW4R-1STAE1LF	Black	30	-55 C	105 ░C	Solder	0.3 mm	Contacts Bottom	1 mm	0.039 in	Phosphor Bronze	FPC	Tapered	4	Glass Filled Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	Gold	100 V	UL94 V-0	1.9 mm	0.075 in	Solder Retention

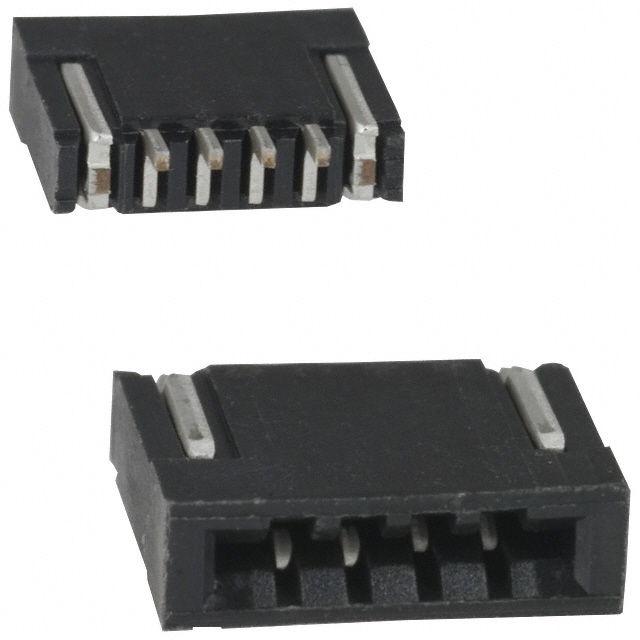

Amphenol ICC (FCI) HFW4R-1STE1LF	Black	30	-55 C	105 ░C	Solder	0.3 mm	Contacts Bottom	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Straight or Tapered	4	Glass Filled Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	Tin	100 V	UL94 V-0	1.9 mm	0.075 in
