9407 Series
Manufacturer: Belden Inc.
Beta
⌘K

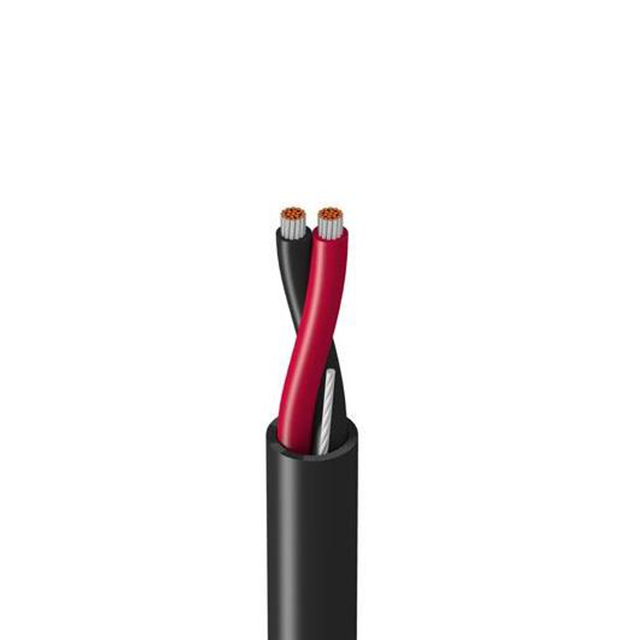

CABLE 2COND 22AWG CHROME
| Part | Usage | Jacket (Insulation) Material | Length | Length | Conductor Material | Jacket Color | Number of Conductors | Features | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Instrumentation | Poly-Vinyl Chloride (PVC) | 2500 ft | 762 m | Copper Tinned | Chrome | 2 | Rip Cord | 22 AWG | 0.94 mm | 0.037 in | 300 VDC | Multi-Conductor | 5.03 mm | 0.198 in | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | -30 ░C | 105 ░C | UL Style 2464 |
 Belden Inc. | Poly-Vinyl Chloride (PVC) | 500 ft | 152.4 m | Copper Tinned | Chrome | 2 | 22 AWG | 0.94 mm | 0.037 in | Multi-Conductor | 5.03 mm | 0.198 in | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | -30 ░C | 105 ░C | ||||
 Belden Inc. | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m | Copper Tinned | Chrome | 2 | Rip Cord | 22 AWG | 0.94 mm | 0.037 in | Multi-Conductor | 5.03 mm | 0.198 in | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | -30 ░C | 105 ░C | UL Style 2464 |
