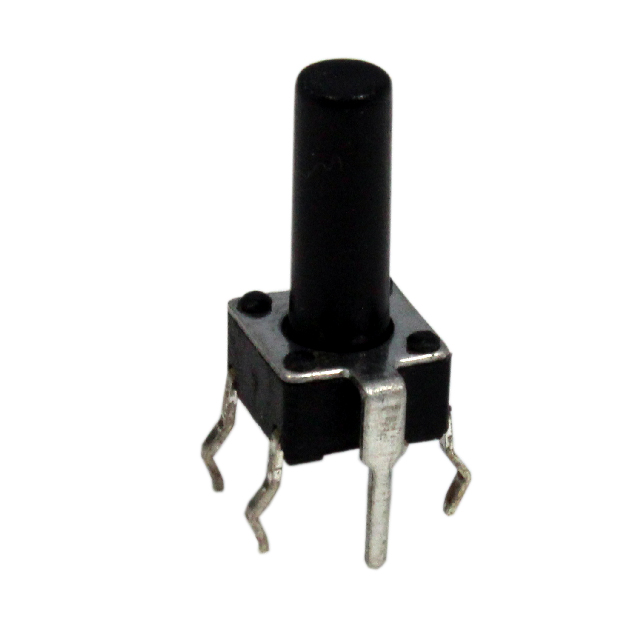

CT1102P13 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical | Circuit | Mounting Type | Actuator Type | Termination Style | Switch Function | Contact Rating @ Voltage | Actuator Orientation | Illumination | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | 6 mm | 6 mm | 13 mm | SPST-NO | Through Hole | Plunger for Cap | PC Pin | Off-Mom | 0.05 A 50 VDC | Top Actuated | Non-Illuminated | 260 gf |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | 6 mm | 6 mm | 13 mm | SPST-NO | Through Hole | Plunger for Cap | PC Pin | Off-Mom | 0.05 A 50 VDC | Top Actuated | Non-Illuminated | 160 gf |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | 6 mm | 6 mm | 13 mm | SPST-NO | Through Hole | Plunger for Cap | PC Pin | Off-Mom | 0.05 A 50 VDC | Top Actuated | Non-Illuminated | 100 gf |
