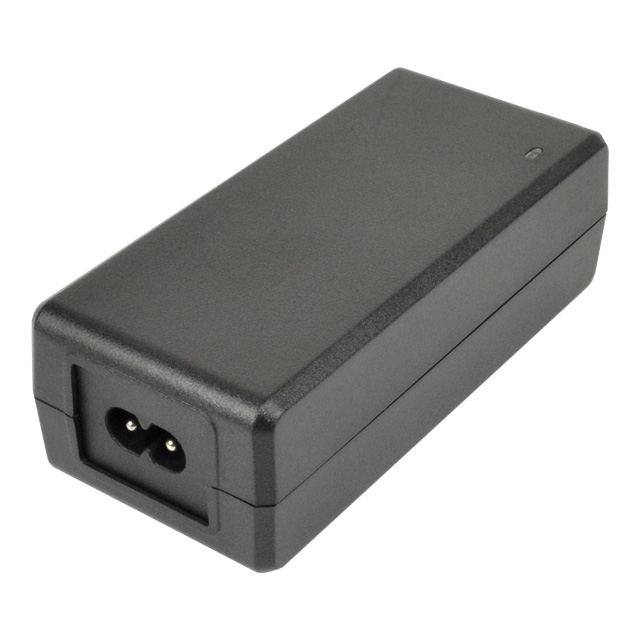

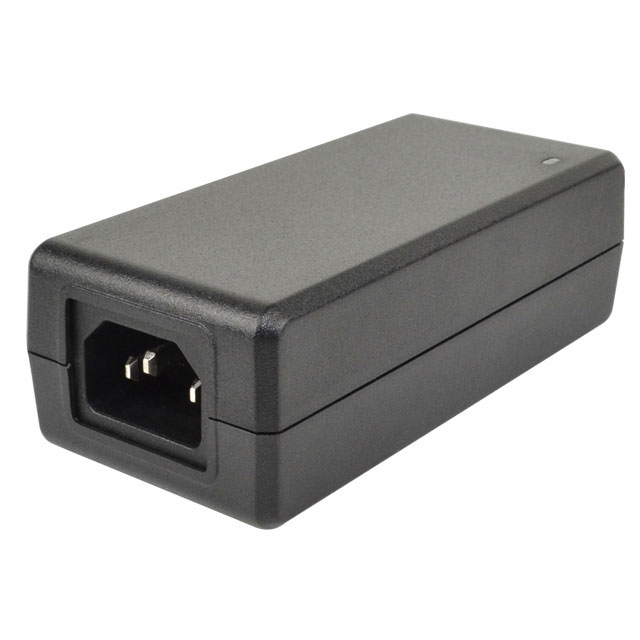

SDI65 Series
Manufacturer: CUI Inc.
Beta
⌘K
PLUG-IN ADAPTER SINGLE-OUT 18V 3.62A 65W
| Part | Applications | Approval Agency | Current - Output (Max) [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | No Load Power Consumption | Form | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Output Connector [diameter] | Output Connector [x] | Output Connector | Voltage - Output | Polarization | Input Connector | Power (Watts) | Cord Length | Cord Length | Region Utilized | Weight | Weight | Output Connector [z] | Current - Output (Max) | Output Connector [custom] | Output Connector [custom] | Output Connector [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 3.62 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord | 210 mW | Desktop (Class II) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 18 V | Positive Center | IEC 320-C8 | 65 W | 1.5 m | 59 in | North America | |||||||
 CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 4.34 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord | 210 mW | Desktop (Class I) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 15 V | Positive Center | IEC 320-C14 | 65 W | 1.5 m | 59 in | North America | |||||||
 CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 3.62 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord (Sold Separately) | 210 mW | Desktop (Class II) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.5 mm 5.5 mm | Barrel Plug R/A | 18 V | Positive Center | IEC 320-C8 | 65 W | 1.5 m | 59 in | International | 310.26 g | 0.684 lb | 9.5 mm | |||||
CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord (Sold Separately) | 210 mW | Desktop (Class I) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.5 mm 5.5 mm | Barrel Plug R/A | 12 V | Positive Center | IEC 320-C14 | 60 W | 1.5 m | 59 in | International | 310.26 g | 0.684 lb | 9.5 mm | 5 A | |||||
CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 2.71 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord (Sold Separately) | 210 mW | Desktop (Class I) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 24 V | Positive Center | IEC 320-C14 | 65 W | 1.5 m | 59 in | International | 310.26 g | 0.684 lb | |||||
 CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord (Sold Separately) | 210 mW | Desktop (Class II) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 12 V | Positive Center | IEC 320-C8 | 60 W | 1.5 m | 59 in | International | 310.26 g | 0.684 lb | 5 A | |||||
CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 3.62 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord | 150 mW | Desktop (Class I) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | Barrel Plug R/A | 18 V | Positive Center | IEC 320-C14 | 65 W | 1.5 m | 59 in | Europe | 9.5 mm | 5.5 mm | 2.1 mm | ||||||
CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 3.43 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord (Sold Separately) | 210 mW | Desktop (Class I) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 19 V | Positive Center | IEC 320-C14 | 65 W | 1.5 m | 59 in | International | 310.26 g | 0.684 lb | |||||
 CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 1.36 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord | 210 mW | Desktop (Class I) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 48 V | Positive Center | IEC 320-C14 | 65 W | 1.5 m | 59 in | North America | |||||||
CUI Inc. | ITE (Commercial) | CB Scheme CCC CSA EN FCC IEC PSE RCM UL | 1.36 A | 264 VAC | 90 VAC | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1 | 40 °C | 0 °C | Cord (Sold Separately) | 210 mW | Desktop (Class II) | 115 mm | 2.09 " | 1.5 in | 53 mm | 38 mm | 4.53 " | CoC Tier 2 Level VI | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 48 V | Positive Center | IEC 320-C8 | 65 W | 1.5 m | 59 in | International | 310.26 g | 0.684 lb |
