PVA3 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PB SPST 2A 36V
| Part | Mechanical Life | Termination Style | Type | Panel Cutout Dimensions [diameter] | Circuit | Features | Current Rating (Amps) | Actuator Type | Voltage Rating - DC | Switch Function | Ingress Protection | Actuator Marking | Color - Actuator/Cap | Mounting Type | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

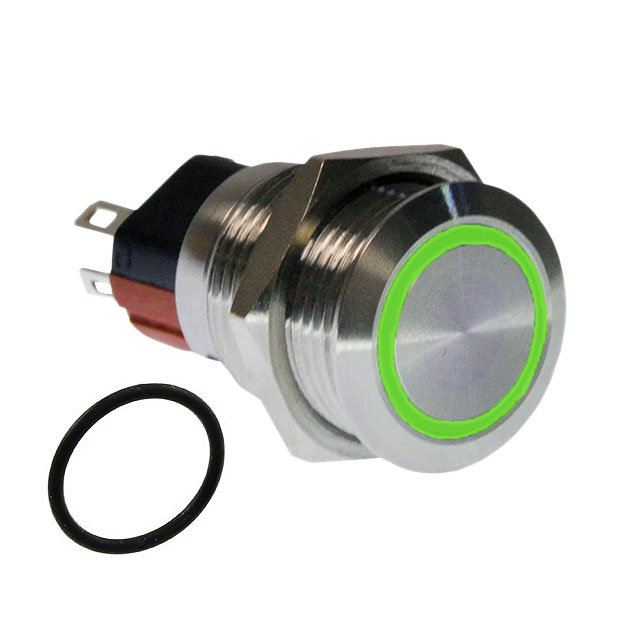

 E-Switch | 500000 Cycles | Solder Lug | Anti-Vandal Illuminated | 16 mm | SPDT | Stainless Steel | 2 A | Button Round | 36 VDC | On-Mom | IP65 - Dust Tight Water Resistant | No Marking | Silver | Panel Mount Front | Green LED | 55 °C | -25 °C | 12 VDC | |

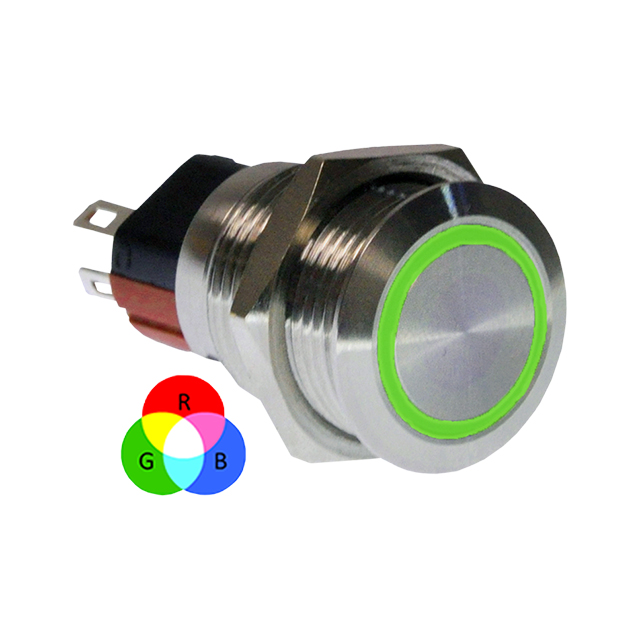

 E-Switch | 500000 Cycles | Solder Lug | Anti-Vandal Illuminated | 16 mm | SPDT | Stainless Steel | 2 A | Button Round | 36 VDC | On-Mom | IP65 - Dust Tight Water Resistant | No Marking | Silver | Panel Mount Front | Blue Green LED Red | 55 °C | -25 °C | 1.8 VDC 2.8 VDC | 50000 Cycles |
 E-Switch | 500000 Cycles | Solder Lug | Anti-Vandal Illuminated | 16 mm | SPDT | Stainless Steel | 2 A | Button Flush Round | 36 VDC | On-Mom | IP65 - Dust Tight Water Resistant | No Marking | Silver | Panel Mount Front | Blue Green LED Red | 55 °C | -25 °C | 1.8 VDC 2.8 VDC | 50000 Cycles |
 E-Switch | 500000 Cycles | Solder Lug | Anti-Vandal Illuminated | 16 mm | SPDT | Stainless Steel | 2 A | Button Round | 36 VDC | On-On | IP65 - Dust Tight Water Resistant | No Marking | Silver | Panel Mount Front | Blue Green LED Red | 55 °C | -25 °C | 1.8 VDC 2.8 VDC | 50000 Cycles |
 E-Switch | 500000 Cycles | Solder Lug | Anti-Vandal Illuminated | 16 mm | SPDT | Stainless Steel | 2 A | Button Flush Round | 36 VDC | On-On | IP65 - Dust Tight Water Resistant | No Marking | Silver | Panel Mount Front | Blue Green LED Red | 55 °C | -25 °C | 1.8 VDC 2.8 VDC | 50000 Cycles |
E-Switch | 500000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | 16 mm | SPDT | 2 A | Button Flush Round | 36 VDC | On-On | IP65 - Dust Tight Water Resistant | Black | Panel Mount Front | LED Orange | 55 °C | -20 ░C | 1.8 VDC | 50000 Cycles | ||

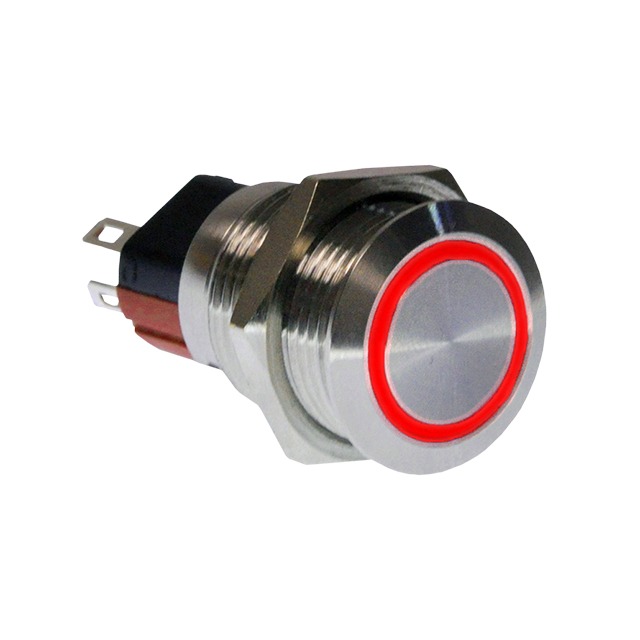

 E-Switch | 500000 Cycles | Solder Lug | Anti-Vandal Illuminated | 16 mm | SPDT | Stainless Steel | 2 A | Button Round | 36 VDC | On-On | IP65 - Dust Tight Water Resistant | No Marking | Silver | Panel Mount Front | LED Red | 55 °C | -25 °C | 1.8 VDC | 50000 Cycles |
