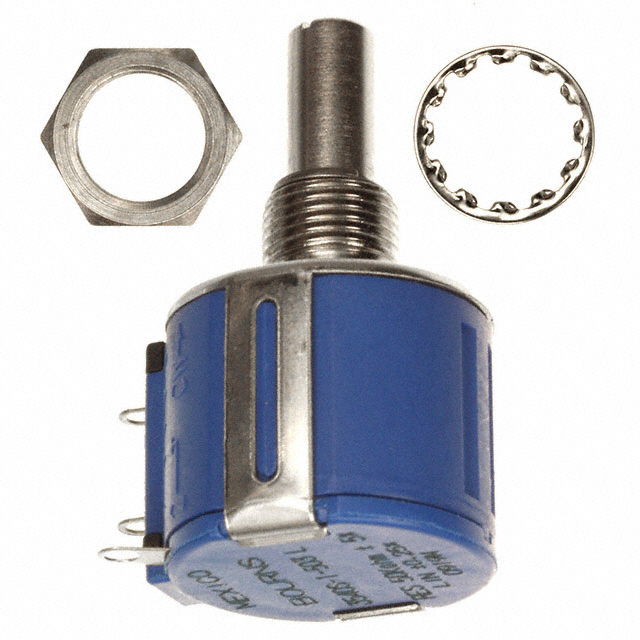

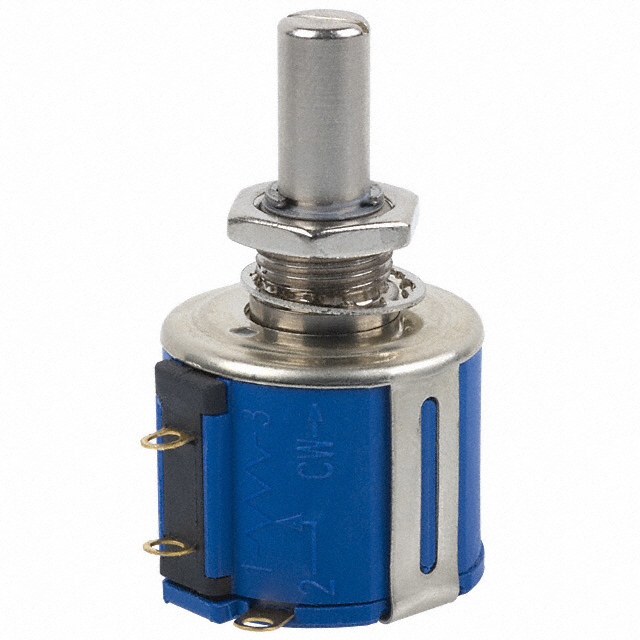

3540S Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 200 OHM 2W WIREWOUND LINEAR
| Part | Size - Body [diameter] | Size - Body [diameter] | Actuator Length [x] | Actuator Length [x] | Mounting Type | Bushing Thread | Number of Turns | Resistance (Ohms) [custom] | Rotation | Adjustment Type | Resistive Material | Tolerance | Termination Style | Power (Watts) | Taper | Built in Switch | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Temperature Coefficient | Actuator Type | Number of Gangs | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 200 Ohms | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | ||
 Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | 5 kOhms | ||
Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | 5 kOhms | ||
Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | 5 kOhms | ||
Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | 10k | ||
 Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | 100k | ||
 Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | 20 kOhms | ||
Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 100 Ohms | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | ||
Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 100 Ohms | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | ||
Bourns Inc. | 22.23 mm | 0.875 " | 0.812 in | 20.63 mm | Panel Mount | 3/8-32 | 10 | 3600 ° | User Defined | Wirewound | 5 % | Solder Lug | 2 W | Linear | None | 0.2497 in | 6.34 mm | 50 ppm/░C | Slotted | 1 | 5 kOhms |
