PK40 Series

Catalog

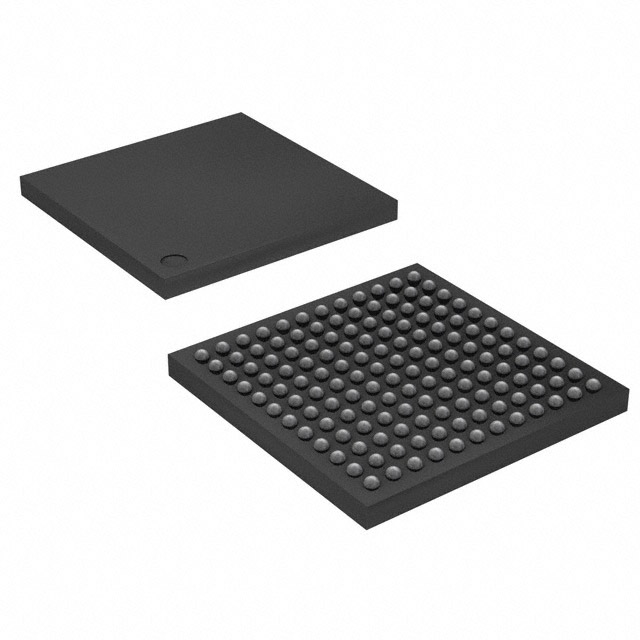

IC MCU 32B 256KB FLASH 144MAPBGA

Part	Core Size (Bit Width)	Core Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Core Processor	Number of I/O	D/A Resolution (bits)	A/D Channels	D/A Channels	A/D Resolution (bits)	Speed	Connectivity	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	RAM Size Depth	RAM Size Width	Oscillator Type	Program Memory Type	Package / Case	EEPROM Size (Width)	EEPROM Size (Depth)	Mounting Type	Peripherals	Package Width	Package Name	Package Length	Program Memory Width	Program Memory Depth	Program Memory Size
NXP USA Inc. PK40X256VMD100	32 Bit	Single-Core	105 °C	-40 °C	ARM® Cortex®-M4	98	12 bit	27 count	2 count	16 bit	100 MHz	CANbus EBI EMI I2C IrDA SD SPI UART USART USB USB OTG	1.71 V	3.6 V	64 K	8 bit	Internal	FLASH	144-LBGA	8 bit	4 K	Surface Mount	DMA I2S LCD LVD POR PWM WDT	13 mm	144-MAPBGA	13 mm	8 bit	256 K	256 KB
NXP USA Inc. PK40X256VLQ100	32 Bit	Single-Core	105 °C	-40 °C	ARM® Cortex®-M4	98	12 bit	27 count	2 count	16 bit	100 MHz	CANbus EBI EMI I2C IrDA SD SPI UART USART USB USB OTG	1.71 V	3.6 V	64 K	8 bit	Internal	FLASH	144-LQFP	8 bit	4 K	Surface Mount	DMA I2S LCD LVD POR PWM WDT	20 mm	144-LQFP	20 mm	8 bit	256 K	256 KB
NXP USA Inc. PK40N512VLQ100	32 Bit	Single-Core	105 °C	-40 °C	ARM® Cortex®-M4	98	12 bit	27 count	2 count	16 bit	100 MHz	CANbus EBI EMI I2C IrDA SD SPI UART USART USB USB OTG	1.71 V	3.6 V	128 K	8 bit	Internal	FLASH	144-LQFP			Surface Mount	DMA I2S LCD LVD POR PWM WDT	20 mm	144-LQFP	20 mm	8 bit	512 K	512 KB
