LPH12 Series

Catalog

FAN AXIAL 120X38MM 100-240VAC

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	Power (Watts)	Static Pressure	Static Pressure	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Noise	Voltage - Rated [Max]	Voltage - Rated [Min]	Fan Type	Air Flow	Air Flow	Width [y]	Features	RPM	Termination	Weight [custom]	Weight [custom]	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Termination	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
Mechatronics Fan Group LPH12A99-BTLR	Plastic	50000 Hrs	Plastic	4.2 W	0.2 in H2O	49.8 Pa	Ball	120 mm	120 mm	39 dB(A)	240 VAC	100 VAC	Tubeaxial	86 CFM	2.41 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC)	2500 RPM	2	0.631 lb	286.2 g
Mechatronics Fan Group LPH12A99-BWER5	Plastic		Plastic	15 W	0.47 in H2O	117.1 Pa	Ball	120 mm	120 mm	47 dB	240 VAC	100 VAC	Tubeaxial	138 CFM	3.86 m³/min	38 mm	Auto Restart Electronic Commutation (EC)	3500 RPM				100 VAC	240 VAC	0.18 A	2 Wire Leads	IP54 - Dust Protected Water Resistant
Mechatronics Fan Group LPH12A99-BWHR-2EM	Plastic		Plastic		0.363 in H2O	90.5 Pa	Ball	120 mm	120 mm	49 dB	240 VAC	100 VAC	Tubeaxial	123.9 CFM	3.47 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC)	3500 RPM		0.631 lb	286.2 g	90 VAC	264 VAC	0.18 A	2 Wire Leads	IP68 - Dust Tight Waterproof
Mechatronics Fan Group LPH12A99-BWHR	Plastic	50000 Hrs	Plastic		0.36 in H2O	89.6 Pa	Ball	120 mm	120 mm	49 dB	240 VAC	100 VAC	Tubeaxial	123.9 CFM	3.47 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC)	3500 RPM				90 VAC	264 VAC	0.18 A	2 Wire Leads		-40 C	70 °C	70 °C	-40 °C	CE cUL TUV UL

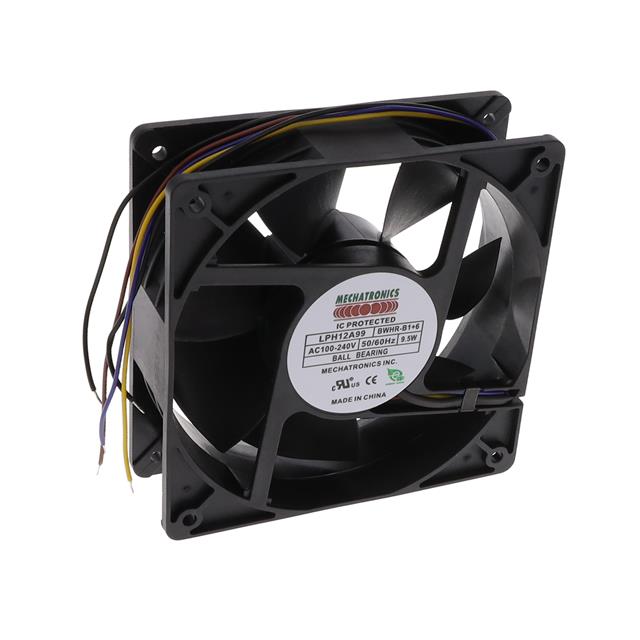

Mechatronics Fan Group LPH12A99-BWHR-B1+6	Plastic		Plastic		0.363 in H2O	90.5 Pa	Ball	120 mm	120 mm	49 dB	240 VAC	100 VAC	Tubeaxial	123.9 CFM	3.47 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC) PWM Control Speed Sensor (Tach)	3500 RPM		0.631 lb	286.2 g	90 VAC	264 VAC	0.18 A	4 Wire Leads

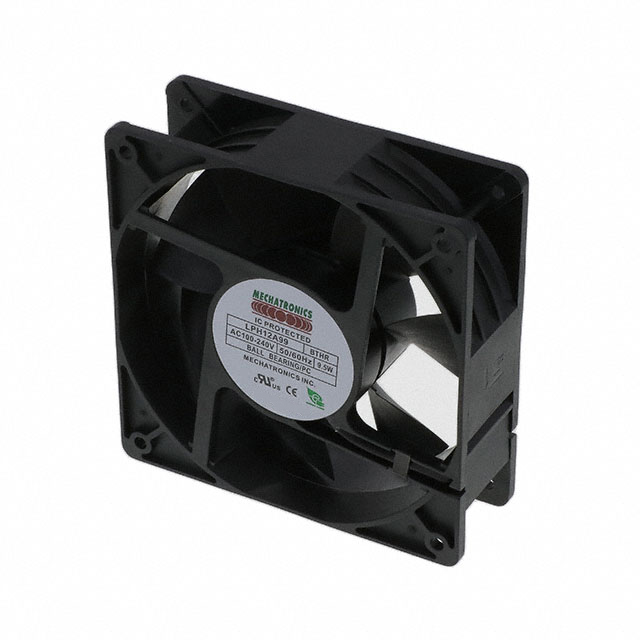

Mechatronics Fan Group LPH12A99-BTHR-PC	Plastic		Plastic		0.363 in H2O	90.5 Pa	Ball	120 mm	120 mm	49 dB	240 VAC	100 VAC	Tubeaxial	123.9 CFM	3.47 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC) Parylene Coating	3500 RPM	2	0.631 lb	286.2 g	90 VAC	264 VAC	0.18 A

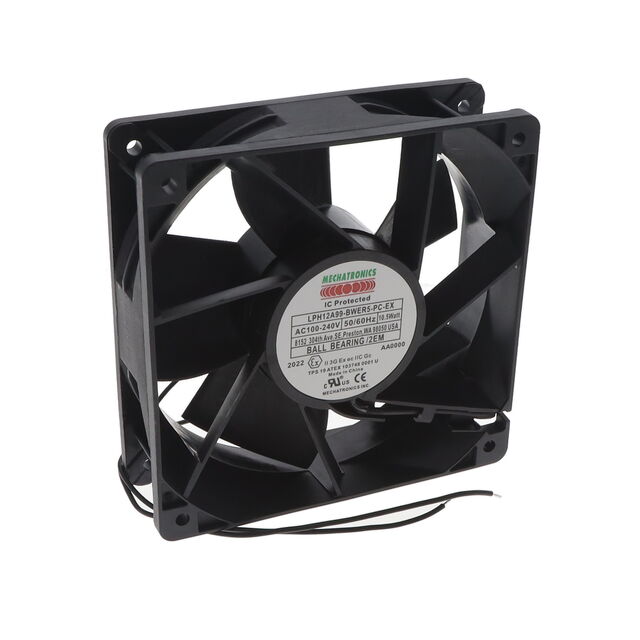

Mechatronics Fan Group LPH12A99-BWER5-PC-EX	Plastic		Plastic	15 W	0.47 in H2O	117.1 Pa	Ball	120 mm	120 mm	47 dB	240 VAC	100 VAC	Tubeaxial	138 CFM	3.86 m³/min	38 mm	Auto Restart Electronic Commutation (EC) Parylene Coating	3500 RPM				85 VAC	265 VAC	0.18 A	2 Wire Leads	IP54 - Dust Protected Water Resistant					ATEX

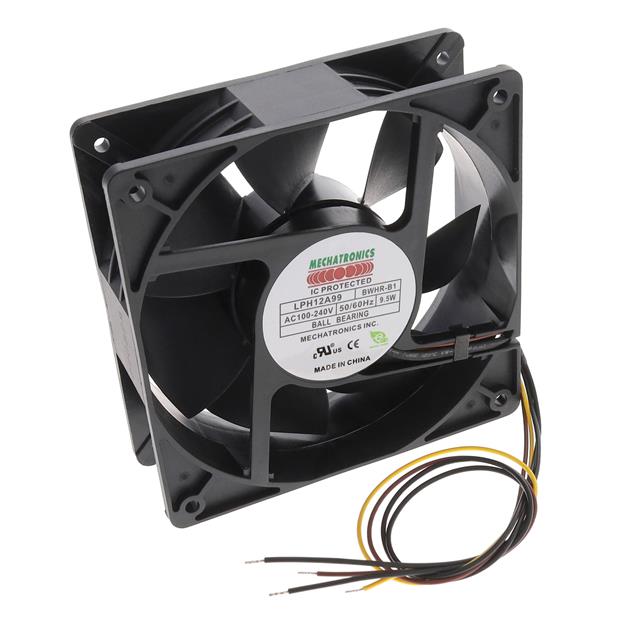

Mechatronics Fan Group LPH12A99-BWHR-B1	Plastic		Plastic		0.363 in H2O	90.5 Pa	Ball	120 mm	120 mm	49 dB	240 VAC	100 VAC	Tubeaxial	123.9 CFM	3.47 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC) Speed Sensor (Tach)	3500 RPM		0.631 lb	286.2 g	90 VAC	264 VAC	0.18 A	3 Wire Leads
Mechatronics Fan Group LPH12A99-BTMR	Plastic	50000 Hrs	Plastic	6.2 W	0.29 in H2O	72.2 Pa	Ball	120 mm	120 mm	45 dB(A)	240 VAC	100 VAC	Tubeaxial	110 CFM	3.08 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC)	3000 RPM	2			90 VAC	264 VAC	120 mA			-40 C	70 °C	70 °C	-40 °C	CE cUL TUV UL

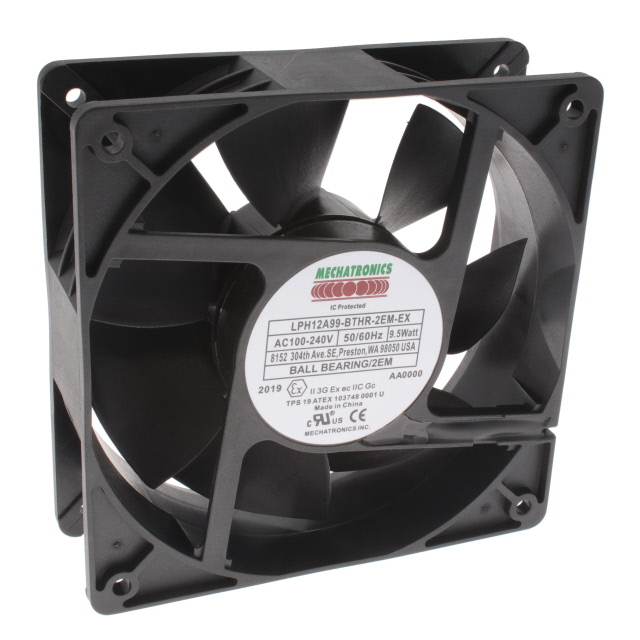

Mechatronics Fan Group LPH12A99-BTHR-2EM-EX	Plastic		Plastic		0.363 in H2O	90.5 Pa	Ball	120 mm	120 mm	49 dB	240 VAC	100 VAC	Tubeaxial	123.9 CFM	3.47 m³/min	38.5 mm	Auto Restart Electronic Commutation (EC)	3500 RPM	2	0.631 lb	286.2 g	90 VAC	264 VAC	0.18 A		IP68 - Dust Tight Waterproof					ATEX
