TMJ03 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

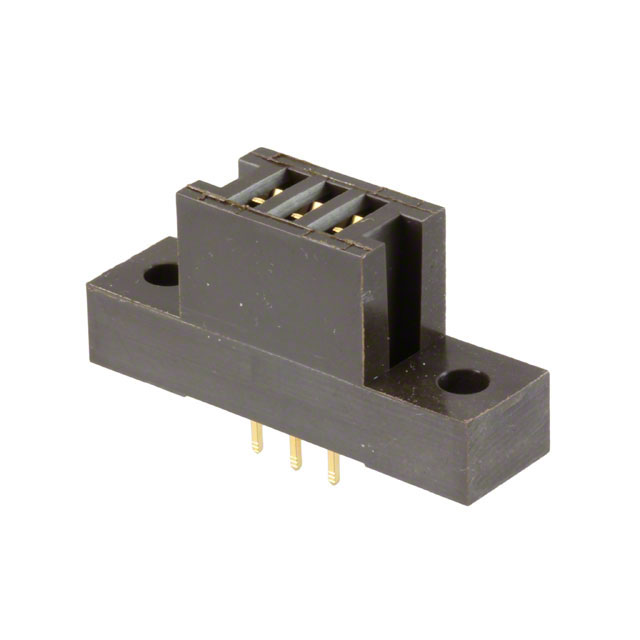

CONN TRANSIST TO-254 3POS GOLD
| Part | Current Rating (Amps) | Contact Resistance | Pitch - Mating | Pitch - Mating | Mounting Type | Type | Features | Termination | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Post [x] | Pitch - Post [x] | Contact Material - Post | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 3 A | 30 mOhm | 0.15 in | 3.81 mm | Through Hole | Transistor TO-254 | Flange | Solder | Beryllium Copper | 30 µin | 0.76 µm | 0.76 Ám | 30 Áin | 3 | Gold | -50 °C | 175 °C | 0.15 in | 3.81 mm | Beryllium Copper | Gold |
