FH Series

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 6.3VDC 680UF 20% HALOGEN FREE AEC-Q200

Part	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Ratings	Capacitance	Lifetime @ Temp.	Tolerance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Polarization	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
Panasonic Electronic Components EEE-FH0J681L	850 mA	0.413 "	10.5 mm	6.3 VDC	AEC-Q200	680 µF	10000 Hrs	20 %	0.406 "	0.406 in	10.3 mm	10.3 mm	150 mOhm	552.5 mA	Polar	Surface Mount	0.394 in	10 mm	Automotive	-55 C	105 ░C	Radial Can - SMD
Panasonic Electronic Components EEE-FH1E331L	850 mA	0.413 "	10.5 mm	25 VDC	AEC-Q200	330 µF	10000 Hrs	20 %	0.406 "	0.406 in	10.3 mm	10.3 mm	150 mOhm	552.5 mA	Polar	Surface Mount	0.394 in	10 mm	Automotive	-55 C	105 ░C	Radial Can - SMD

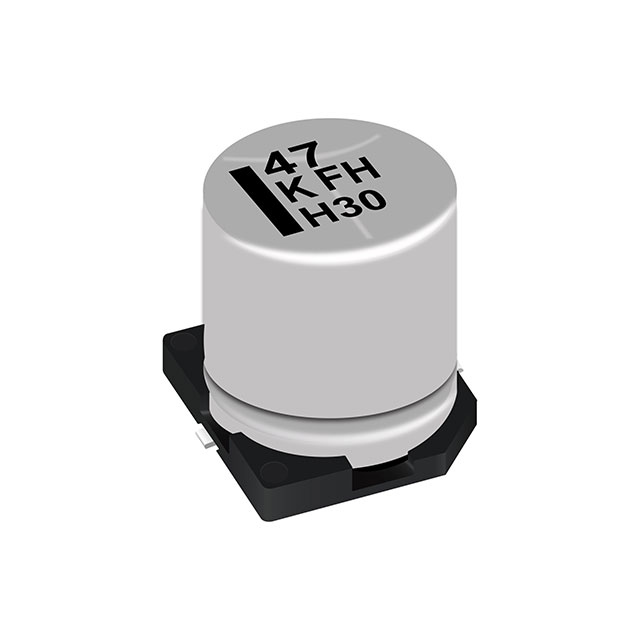

Panasonic Electronic Components EEE-FH1E470XL	300 mA	0.315 in	8 mm	25 VDC	AEC-Q200	47 µF	10000 Hrs	20 %	0.26 in	0.26 in	6.6 mm	6.6 mm	450 mOhm		Polar	Surface Mount	0.248 "	6.3 mm	Automotive	-55 C	105 ░C	Radial Can - SMD
