TCBN-T1 Series

Catalog

BRD SPT SNAP LOCK SCREW MNT 60MM

Part	Features	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Material	Mounting Type	Between Board Height [z]	Between Board Height [z]	Length - Overall	Between Board Height
Essentra Components TCBN-T1-M3-8-60	M3 Thread	1.6 mm	0.063 in	69.5 mm	2.736 in	3.18 mm	0.125 in	0.125 in	2.362 in	60 mm	3.99 mm	0.157 "	Snap Lock	Nylon	Screw Mount
Essentra Components TCBN-T1-M3-6-10	M3 Thread	1.6 mm	0.063 in		0.768 in	3.18 mm	0.125 in	0.125 in			3.99 mm	0.157 "	Snap Lock	Nylon	Screw Mount	0.394 in	10 mm	19.5 mm

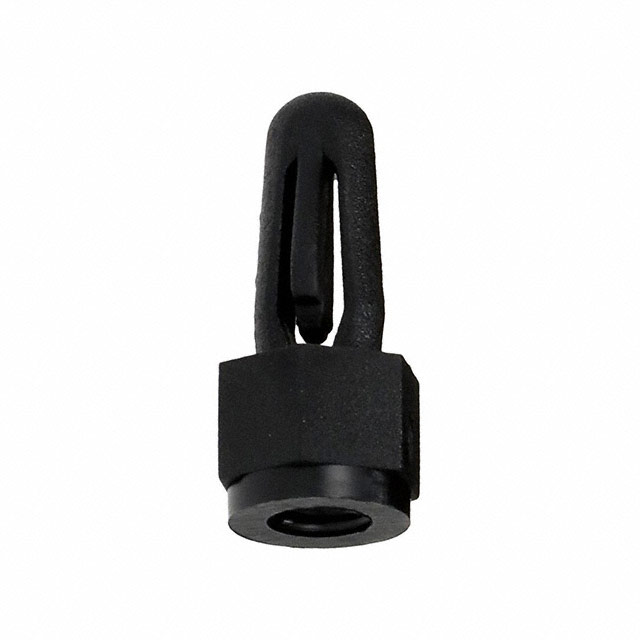

Essentra Components TCBN-T1-M3-6-5	M3 Thread	1.6 mm	0.063 in	14.5 mm	0.571 "	3.18 mm	0.125 in	0.125 in	0.197 in	5 mm	3.99 mm	0.157 "	Snap Lock	Nylon	Screw Mount
Essentra Components TCBN-T1-M3-6-12	M3 Thread	1.6 mm	0.063 in	21.5 mm	0.846 "	3.18 mm	0.125 in	0.125 in	12 mm		3.99 mm	0.157 "	Snap Lock	Nylon	Screw Mount				0.472 in
Essentra Components TCBN-T1-M4-8-9	M4 Thread	1.6 mm	0.063 in	18.5 mm	0.728 in	4.8 mm	0.189 "		9 mm		3.99 mm	0.157 "	Snap Lock	Nylon	Screw Mount				0.354 in
