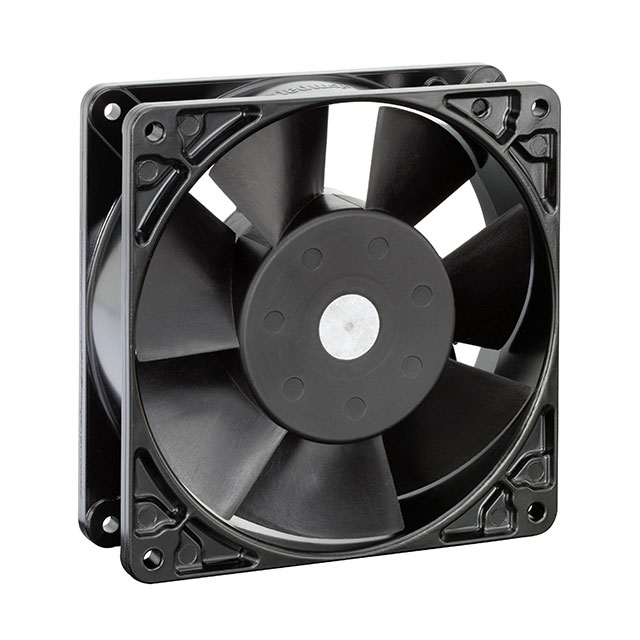

5958 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

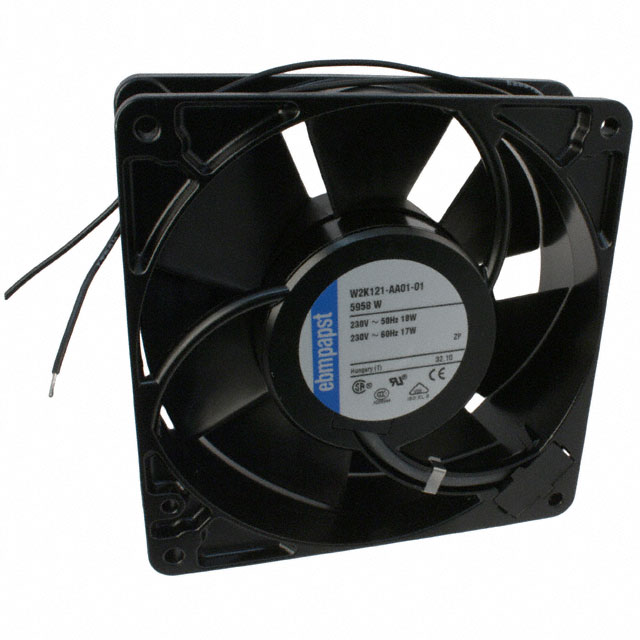

FAN AXIAL 127X38MM 230VAC WIRE
| Part | Material - Frame | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Termination | Bearing Type | Noise | RPM | Approval Agency | Power (Watts) | Static Pressure | Static Pressure | Fan Type | Weight [custom] | Weight [custom] | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Metal | 0.095 A | Polyamide (PA) Nylon Fiberglass Reinforced | 42500 Hrs | 38 mm | 75 ░C | -30 ░C | 230 VAC | 2 Wire Leads | Ball | 46 dB(A) | 3100 RPM | CCC CE CSA UL VDE | 17 W | 65 Pa | 0.261 in H2O | Tubeaxial | 1.3 lbs | 589.7 g | 5 in | 5 " | 121.2 CFM | 3.39 mł/min |
