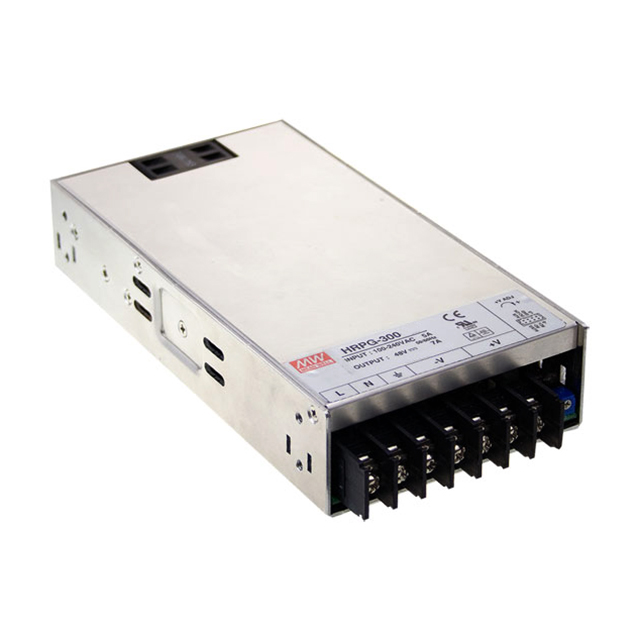

HRP-300 Series

Catalog

AC/DC CONVERTER 24V 336W

Part	Number of Outputs	Current - Output 1 [custom]	Voltage - Isolation	Voltage - Output 1	Applications	Features	Approval Agency	Power (Watts)	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Type	Current - Output 1	Voltage - Output 1 [custom]	Standard Number
MEAN WELL USA Inc. HRP-300-24	1	14 A	3000 V	24 V	ITE (Commercial)	Adjustable Output PFC Universal Input	CB CE cURus TUV	336 W	87 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed
MEAN WELL USA Inc. HRP-300-7.5	1		3000 V	7.5 V	ITE (Commercial)	Adjustable Output PFC Universal Input	CB CE cURus TUV	300 W	86 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	40 A
MEAN WELL USA Inc. HRP-300-36	1		3000 V		ITE (Commercial)	Adjustable Output PFC Universal Input	CB CE cURus TUV	324 W	88 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	9 A	36 V

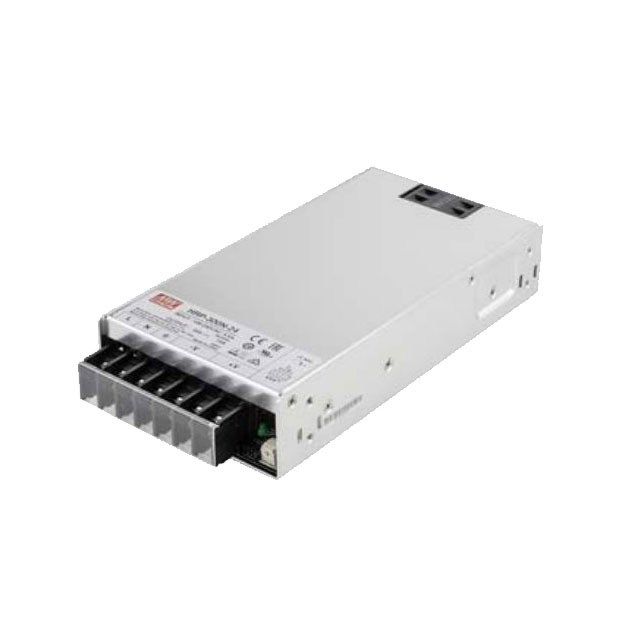

MEAN WELL USA Inc. HRP-300N-12	1		3000 V	12 V	ITE (Commercial)	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	324 W	88 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	27 A		62368-1
MEAN WELL USA Inc. HRP-300-5	1		3000 V	5 V	ITE (Commercial)	Adjustable Output PFC Universal Input	CB CE cURus TUV	300 W		85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	60 A
MEAN WELL USA Inc. HRP-300-15	1		3000 V	15 V	ITE (Commercial)	Adjustable Output PFC Universal Input	CB CE cURus TUV	330 W	88 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	22 A
MEAN WELL USA Inc. HRP-300N-48	1		3000 V	48 V	ITE (Commercial)	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	336 W	89 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	7 A		62368-1
MEAN WELL USA Inc. HRP-300N-24	1	14 A	3000 V	24 V	ITE (Commercial)	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	336 W	87 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed			62368-1
MEAN WELL USA Inc. HRP-300N-36	1		3000 V		ITE (Commercial)	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	324 W	88 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	9 A	36 V	62368-1
MEAN WELL USA Inc. HRP-300-12	1		3000 V	12 V	ITE (Commercial)	Adjustable Output PFC Universal Input	CB CE cURus TUV	324 W	88 %	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Chassis Mount	Enclosed	27 A
