F48 Series

Catalog

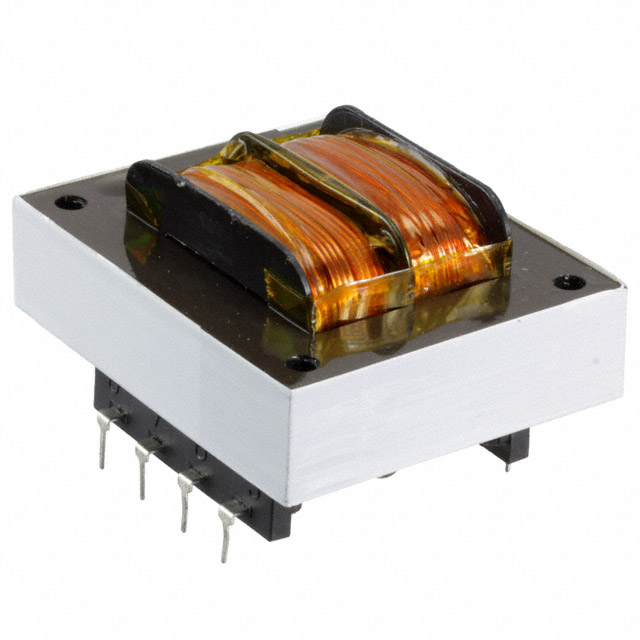

POWER XFMR 48.0VCT@0.125A UL/CUL 115V SPLIT PACK PCB MOUNT/F48-125 ROHS COMPLIANT: YES

Part	Type	Current - Output (Max)	Voltage - Primary	Voltage - Secondary (Full Load)	Secondary Winding(s)	Height - Seated (Max) [Max] [z]	Power - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Primary Winding(s)	Voltage - Isolation	Mounting Type	Termination Style	Weight [custom]	Weight [custom]	Height - Seated (Max) [Max]	Weight	Weight	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]
Triad Magnetics F48-125	Laminated Core	125 mA 250 mA	115 V	24 V 48 V	Dual	33.32 mm	6 VA	41.28 mm	33.32 mm	Single	2500 Vrms	Through Hole	PC Pin	0.44 lb	199.58 g
Triad Magnetics F48-750	Laminated Core	1.5 A 750 mA	115 V	24 V 48 V	Dual		36 VA	66.68 mm	55.55 mm	Single	2500 Vrms	Through Hole	PC Pin			39.67 mm	1.1 lbs	499 g
Triad Magnetics F48-400	Laminated Core		115 V	24 V 48 V	Dual	36.5 mm	20 VA	2.25 "	47.63 mm	Single	2500 Vrms	Through Hole	PC Pin				0.8 lb	362.87 g	400 mA	800 mA
