LP2S3 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSH SPST-NO 1MA 20V
| Part | Mechanical Life | Actuator Marking | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Type | Switch Function | Mounting Type | Voltage Rating - DC | Termination Style | Color - Actuator/Cap | Actuator Type | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

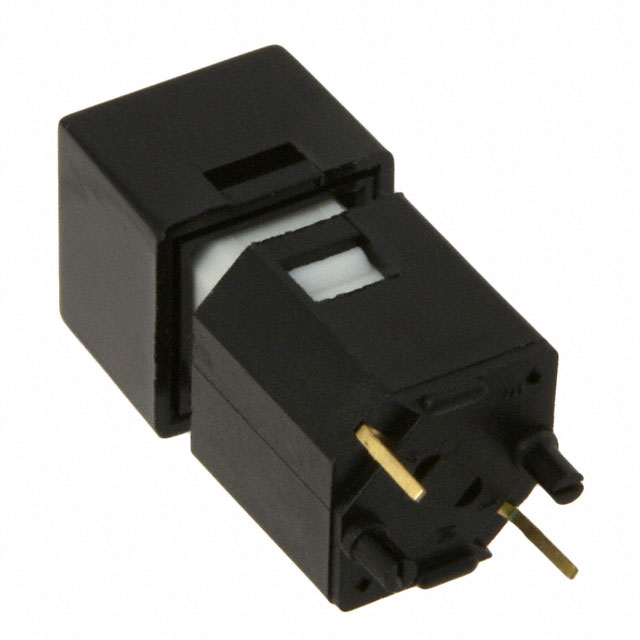

 E-Switch | 300000 Cycles | No Marking | 1 mA | -20 ░C | 70 °C | SPST-NO | Standard | Off-Mom | Through Hole | 20 V | PC Pin | Black | Button Square | ||

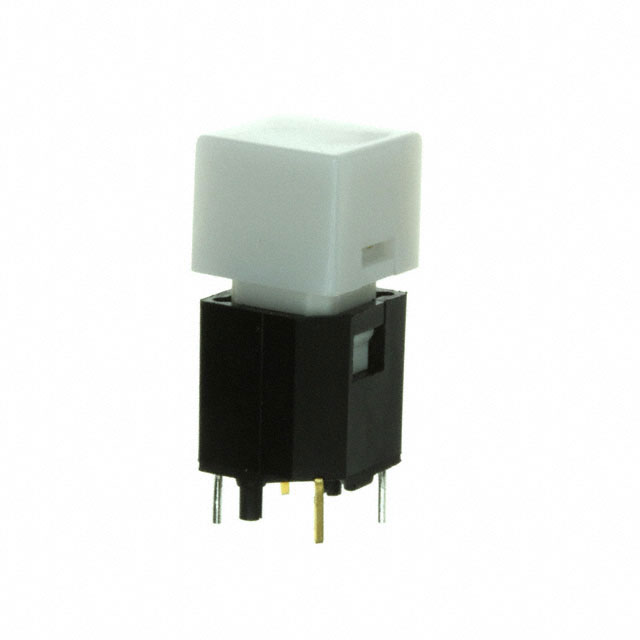

 E-Switch | 300000 Cycles | No Marking | 1 mA | -20 ░C | 70 °C | SPST-NO | Illuminated Standard | Off-Mom | Through Hole | 20 V | PC Pin | White | Button Square | 3.5 VDC | Blue LED |

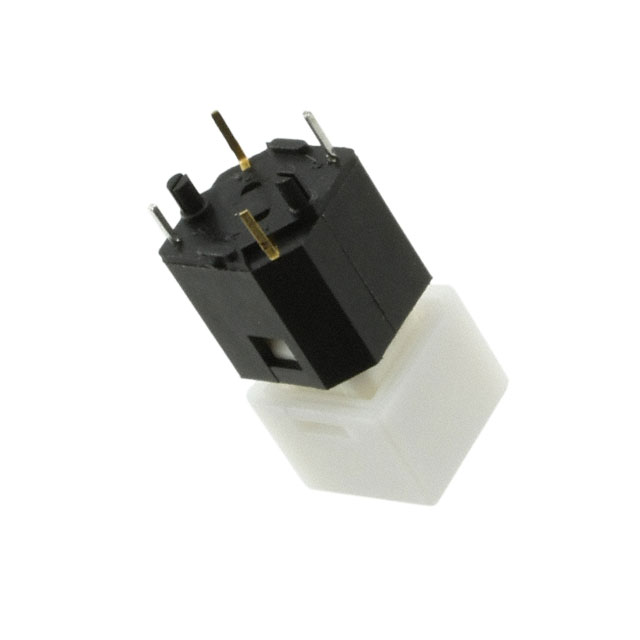

 E-Switch | 300000 Cycles | No Marking | 1 mA | -20 ░C | 70 °C | SPST-NO | Illuminated Standard | Off-Mom | Through Hole | 20 V | PC Pin | White | Button Square | 1.5 VDC | LED Red |
