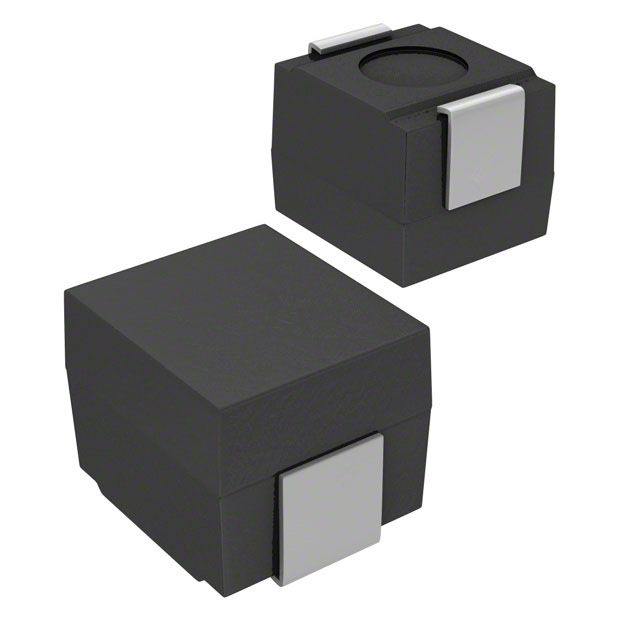

S1008/R Series

Manufacturer: Delevan

Catalog

RF INDUCTORS - SMD .22UH 5% .13OHM SHIELDED SMT INDUC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Frequency - Self Resonant	Supplier Device Package	Supplier Device Package	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Package / Case	Package / Case	Mounting Type	Current Rating (Amps)	Inductance Frequency - Test	DC Resistance (DCR)	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	DC Resistance (DCR) [Max]
Delevan S1008-221J	-55 C	125 °C	Ferrite	323 MHz	2520 Metric	1008	25 MHz	40	0.105 "	2.66 mm	0.115 "	2.92 mm	220 nH	2520 Metric	1008	Surface Mount	930 mA	25 MHz	130 mOhm	Shielded	2.41 mm	0.095 in	5 %
Delevan S1008R-392J	-55 C	125 °C	Ferrite	45 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	3.9 µH	2520 Metric	1008	Surface Mount	335 mA	7.9 MHz		Shielded	2.41 mm	0.095 in	5 %	1 Ohm
Delevan S1008-331K	-55 C	125 °C	Ferrite	293 MHz	2520 Metric	1008	25 MHz	40	0.105 "	2.66 mm	0.115 "	2.92 mm	330 nH	2520 Metric	1008	Surface Mount	865 mA	25 MHz	150 mOhm	Shielded	2.41 mm	0.095 in	10 %
Delevan S1008R-562J	-55 C	125 °C	Ferrite	40 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	5.6 µH	2520 Metric	1008	Surface Mount	295 mA	7.9 MHz		Shielded	2.41 mm	0.095 in	5 %	1.3 Ohm
Delevan S1008R-152J	-55 C	125 °C	Ferrite	72 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	1.5 µH	2520 Metric	1008	Surface Mount	0.545 A	25 MHz	420 mOhm	Shielded	2.41 mm	0.095 in	5 %
Delevan S1008R-182J	-55 C	125 °C	Ferrite	66 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	1.8 µH	2520 Metric	1008	Surface Mount	435 mA	25 MHz		Shielded	2.41 mm	0.095 in	5 %
Delevan S1008R-182H	-55 C	125 °C	Ferrite	66 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	1.8 µH	2520 Metric	1008	Surface Mount	435 mA	25 MHz		Shielded	2.41 mm	0.095 in	3 %
Delevan S1008-272H	-55 C	125 °C	Ferrite	55 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	2.7 µH	2520 Metric	1008	Surface Mount	365 mA	7.9 MHz		Shielded	2.41 mm	0.095 in	3 %	850 mOhm
Delevan S1008R-682J	-55 C	125 °C	Ferrite	38 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	6.8 µH	2520 Metric	1008	Surface Mount	0.25 A	7.9 MHz		Shielded	2.41 mm	0.095 in	5 %	1.8 Ohm
Delevan S1008R-332K	-55 C	125 °C	Ferrite	50 MHz	2520 Metric	1008	7.9 MHz	30	0.105 "	2.66 mm	0.115 "	2.92 mm	3.3 µH	2520 Metric	1008	Surface Mount	335 mA	7.9 MHz		Shielded	2.41 mm	0.095 in	10 %
