600S Series

Catalog

SILICON RF CAPACITORS / THIN FILM 250VOLTS 82PF 1%

Part	Voltage - Rated	Temperature Coefficient	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Capacitance	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

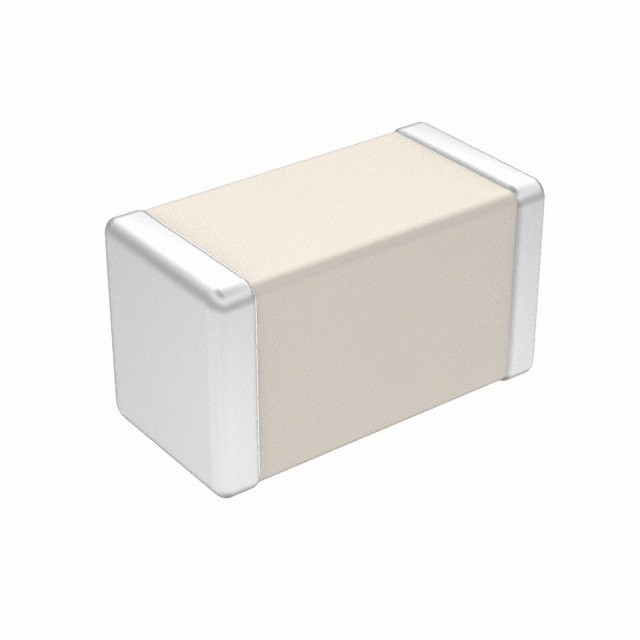

KYOCERA AVX 600S820FW250XT	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q High Voltage Low ESL Low Loss Non-Magnetic	1 %	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	82 pF	1608 Metric	0603
KYOCERA AVX 600S180FW250XT4K	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	1 %	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	18 pF	1608 Metric	0603
KYOCERA AVX 600S910FT250XT	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	1 %	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	91 pF	1608 Metric	0603
KYOCERA AVX 600S0R6AT250XT4K	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	0.05 pF	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	0.6 pF	1608 Metric	0603
KYOCERA AVX 600S680JT250XT	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	5 %	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	68 pF	1608 Metric	0603
KYOCERA AVX 600S0R1BT250XT	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	0.1 pF	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	0.1 pF	1608 Metric	0603
KYOCERA AVX 600S0R4BT250XT	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	0.1 pF	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	0.4 pF	1608 Metric	0603
KYOCERA AVX 600S390JW250XT	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	5 %	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	39 pF	1608 Metric	0603	0.035 in	0.9 mm
KYOCERA AVX 600S101FW250XT	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	1 %	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	100 pF	1608 Metric	0603
KYOCERA AVX 600S1R2BW250XT4K	250 V	C0G NP0	Bypass Decoupling High Frequency Microwave RF	0.032 in	1.6 mm	0.063 "	0.81 mm	High Q Low Loss Ultra Low ESR	0.1 pF	-55 C	125 °C	0.89 mm	0.035 "	MLCC Surface Mount	1.2 pF	1608 Metric	0603
