RDS-16S Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

Catalog

SWITCH ROTARY DIP HEX 0.025A 24V

...

Part	Actuator Level	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Actuator Type	Voltage Rating	Washable	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Material	Termination Style	Current Rating (Amps)	Contact Finish	Number of Positions	Electrical Life	Pitch	Pitch	Features	Body Material	Length [x]	Length [x]

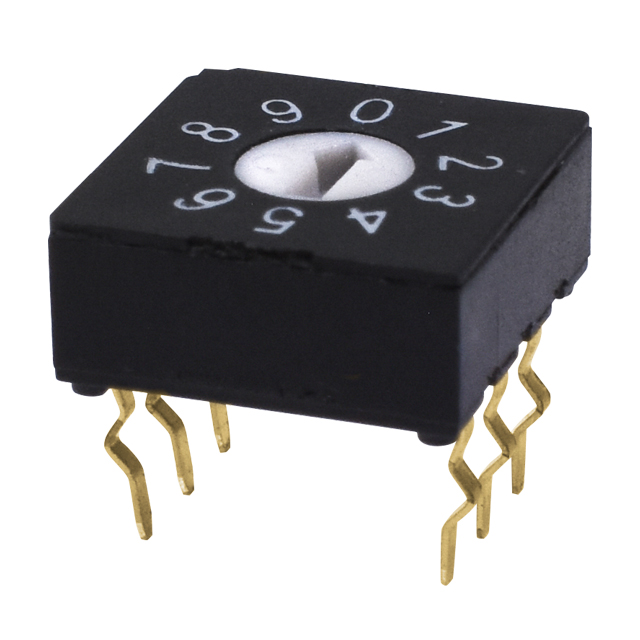

Same Sky (Formerly CUI Devices) RDS-16S-1055-D	Flush Recessed	2.54 mm	0.1 "	0.217 in	5.5 mm	Rotary for Tool	24 VDC		Hexadecimal	85 °C	-40 C	Through Hole	Copper Alloy	PC Pin	25 mA	Gold	16
Same Sky (Formerly CUI Devices) RDS-16S-7229-S-ASMT-TR	Raised	1.27 mm		0.291 in	7.4 mm	Rotary with Shaft	50 V		Hexadecimal	85 °C	-40 C	Right Angle Surface Mount	Copper Alloy	Gull Wing	100 mA	Gold	16	10000 Cycles	0.05 "	Half	IP67 - Dust Tight Waterproof	Liquid Crystal Polymer (LCP)	7.2 mm	0.283 in
Same Sky (Formerly CUI Devices) RDS-16S-7229-R-D	Raised	2.54 mm	0.1 "	0.232 "	5.9 mm	Rotary with Shaft	50 V		Hexadecimal	85 °C	-40 C	Through Hole	Copper Alloy	PC Pin	100 mA	Gold	16				IP67 - Dust Tight Waterproof
Same Sky (Formerly CUI Devices) RDS-16S-1055-SMT	Flush Recessed	2.54 mm	0.1 "	0.217 in	5.5 mm	Rotary for Tool	24 VDC		Hexadecimal	85 °C	-40 C	Surface Mount	Copper Alloy	Gull Wing	25 mA	Gold	16	10000 Cycles				Polyamide (PA9T)	10 mm	0.394 in

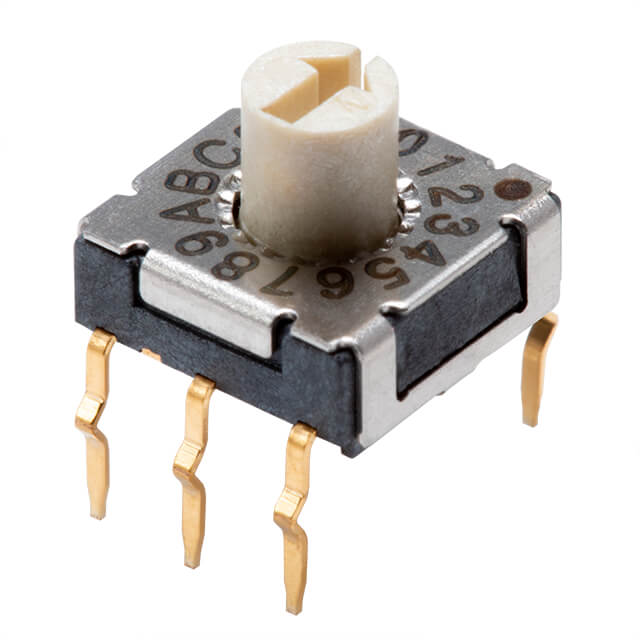

Same Sky (Formerly CUI Devices) RDS-16S-7229-R-CR	Raised	2.54 mm	0.1 "	0.232 "	5.9 mm	Rotary with Shaft	50 V		Hexadecimal	85 °C	-40 C	Through Hole	Copper Alloy	PC Pin	100 mA	Gold	16	10000 Cycles			IP67 - Dust Tight Waterproof	Liquid Crystal Polymer (LCP)	7.2 mm	0.283 in
Same Sky (Formerly CUI Devices) RDS-16S-7229-A-JSMT	Flush Recessed	2.54 mm	0.1 "	0.118 in	3 mm	Rotary for Tool	50 V		Hexadecimal	85 °C	-40 C	Surface Mount	Copper Alloy	J Lead	100 mA	Gold	16	10000 Cycles			IP67 - Dust Tight Waterproof	Liquid Crystal Polymer (LCP)	7.2 mm	0.283 in

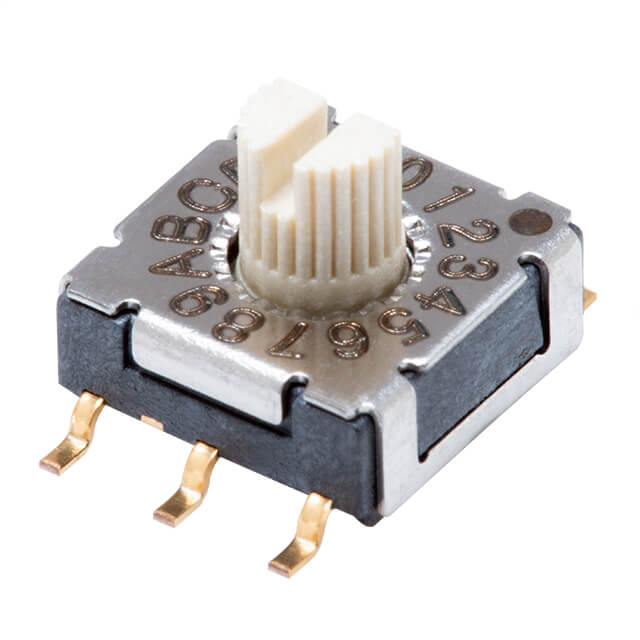

Same Sky (Formerly CUI Devices) RDS-16S-7229-S-SMT-TR	Raised	2.54 mm	0.1 "	0.236 in	6 mm	Rotary with Shaft	50 V		Hexadecimal	85 °C	-40 C	Surface Mount	Copper Alloy	Gull Wing	100 mA	Gold	16	10000 Cycles			IP67 - Dust Tight Waterproof	Liquid Crystal Polymer (LCP)	7.2 mm	0.283 in
Same Sky (Formerly CUI Devices) RDS-16S-7229-S-JSMT-TR	Raised	2.54 mm	0.1 "	0.236 in	6 mm	Rotary with Shaft	50 V		Hexadecimal	85 °C	-40 C	Surface Mount	Copper Alloy	J Lead	100 mA	Gold	16				IP67 - Dust Tight Waterproof
Same Sky (Formerly CUI Devices) RDS-16S-7229-C-JSMT-TR	Flush Recessed	2.54 mm	0.1 "	0.118 in	3 mm	Rotary for Tool	50 V		Hexadecimal	85 °C	-40 C	Surface Mount	Copper Alloy	J Lead	100 mA	Gold	16	10000 Cycles			IP67 - Dust Tight Waterproof	Liquid Crystal Polymer (LCP)	7.2 mm	0.283 in
Same Sky (Formerly CUI Devices) RDS-16S-74R45A-254-D	Raised	2.54 mm	0.1 "	0.291 in	7.4 mm	Rotary with Shaft	42 VDC		Hexadecimal	125 °C	-60 °C	Right Angle Through Hole	Copper Alloy	PC Pin	100 mA	Gold	16				IP67 - Dust Tight Waterproof
