P89LPC935 Series

Catalog

IC MCU 8BIT 8KB FLASH 28PLCC

Part	Core Processor	Program Memory Depth	Program Memory Width	Program Memory Size	EEPROM Size (Width)	EEPROM Size (Depth)	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Oscillator Type	Number of I/O	Package Width	Package Name	Package Length	Peripherals	Core Size (Bit Width)	Mounting Type	RAM Size Width	RAM Size Depth	Speed	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	D/A Resolution (bits)	A/D Channels	A/D Resolution (bits)	D/A Channels	Package / Case	Program Memory Type
NXP USA Inc. P89LPC935FA,129	8051	8 K	8 bit	8 KB	8 bit	512	2.4 V	3.6 V	Internal	26	11.48 mm	28-PLCC	11.48 mm	Brown-out Detect LED POR PWM Reset WDT	8 Bit	Surface Mount	8 bit	768	12 MHz	I2C SPI UART USART	85 °C	-40 °C	8 bit	8 count	8 bit	2 count	28-LCC (J-Lead)	FLASH
NXP USA Inc. P89LPC935FDH,529	8051	8 K	8 bit	8 KB	8 bit	512	2.4 V	3.6 V	Internal	26	4.4 mm	28-TSSOP	0.173 in	Brown-out Detect LED POR PWM Reset WDT	8 Bit	Surface Mount	8 bit	768	12 MHz	I2C SPI UART USART	85 °C	-40 °C	8 bit	8 count	8 bit	2 count		FLASH

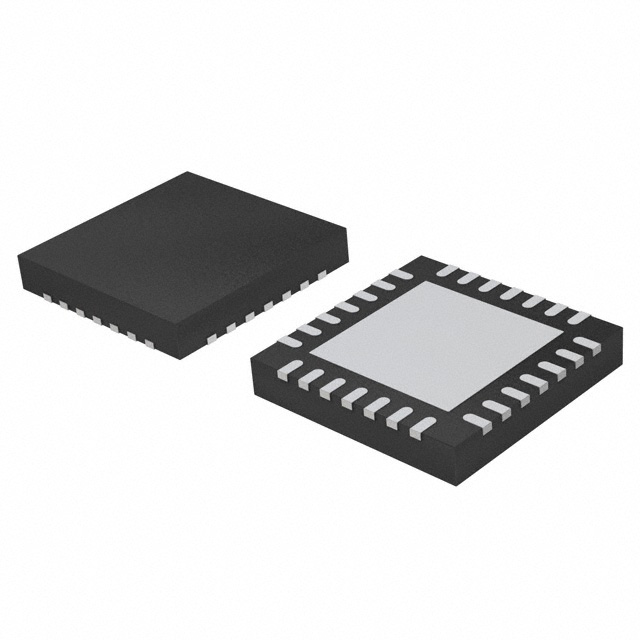

NXP USA Inc. P89LPC935FHN,151	8051	8 K	8 bit	8 KB	8 bit	512	2.4 V	3.6 V	Internal	26	6 mm	28-HVQFN	6 mm	Brown-out Detect LED POR PWM Reset WDT	8 Bit	Surface Mount	8 bit	768	12 MHz	I2C SPI UART USART	85 °C	-40 °C	8 bit	8 count	8 bit	2 count	28-VQFN Exposed Pad	FLASH
NXP USA Inc. P89LPC935FDH,518	8051	8 K	8 bit	8 KB	8 bit	512	2.4 V	3.6 V	Internal	26	4.4 mm	28-TSSOP	0.173 in	Brown-out Detect LED POR PWM Reset WDT	8 Bit	Surface Mount	8 bit	768	12 MHz	I2C SPI UART USART	85 °C	-40 °C	8 bit	8 count	8 bit	2 count		FLASH
