9WFA Type Series

DC Fans Axial Fan, 92x92x25mm, 24VDC, 100.6CFM, 10.8W, 56dBA, 7350RPM, Oil Proof, Tach

Catalog

DC Fans Axial Fan, 92x92x25mm, 24VDC, 100.6CFM, 10.8W, 56dBA, 7350RPM, Oil Proof, Tach

Part	Bearing Type	Noise	Width [y]	Voltage - Rated	Weight	Weight	Air Flow	Air Flow	Fan Type	Power (Watts)	RPM	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency	Termination	Ingress Protection	Size / Dimension [y]	Weight [custom]	Weight [custom]	Width [x]

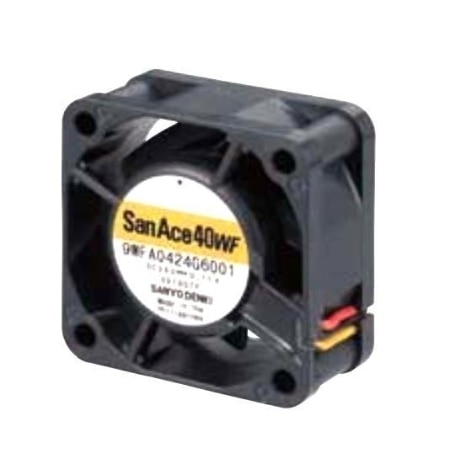

Sanyo Denki America Inc. 9WFA0424G6001	Ball	48 dB	20 mm	24 VDC	45.81 g	0.101 lb	0.305 mł/min	10.9 CFM	Tubeaxial	2.6 W	17000 RPM	40 mm	40 mm	0.68 in H2O	169.4 Pa	-20 ░C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	3 Wire Leads	Oil Resistant
Sanyo Denki America Inc. 9WFA0924G2D001	Ball	63 dB	32 mm	24 VDC	205.02 g	0.452 lb	3.07 m³/min	109.5 CFM	Tubeaxial	13.9 W	9600 RPM	92 mm		1.53 in H2O	381.1 Pa	-20 ░C	70 °C	Locked Rotor Sensor	cURus TUV	3 Wire Leads	Oil Resistant	92 mm
Sanyo Denki America Inc. 9WFA0924H4001	Ball	52 dB		24 VDC			2.32 m³/min	83 CFM	Tubeaxial	6.72 W	6100 RPM	92 mm		0.69 in H2O	171.8 Pa	-20 ░C	70 °C	Speed Sensor (Tach)	cURus TUV	3 Wire Leads	Oil Resistant	92 mm	0.375 lb	170.1 g	25.2 mm
Sanyo Denki America Inc. 9WFA0924G4001	Ball	56 dB		24 VDC			2.82 m³/min	100.6 CFM	Tubeaxial	10.8 W	7350 RPM	92 mm		1 in H2O	249.1 Pa	-20 ░C	70 °C	Speed Sensor (Tach)	cURus TUV	3 Wire Leads	Oil Resistant	92 mm	0.375 lb	170.1 g	25.2 mm
Sanyo Denki America Inc. 9WFA0924G2001	Ball	63 dB	32 mm	24 VDC	205.02 g	0.452 lb	3.07 m³/min	109.5 CFM	Tubeaxial	13.9 W	9600 RPM	92 mm		1.53 in H2O	381.1 Pa	-20 ░C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	3 Wire Leads	Oil Resistant	92 mm
Sanyo Denki America Inc. 9WFA0924G2002	Ball	63 dB	32 mm	24 VDC	205.02 g	0.452 lb	3.07 m³/min	109.5 CFM	Tubeaxial	13.9 W	9600 RPM	92 mm		1.53 in H2O	381.1 Pa	-20 ░C	70 °C		cURus TUV	2 Wire Leads	Oil Resistant	92 mm
Sanyo Denki America Inc. 9WFA0624G6001	Ball	48 dB	20 mm	24 VDC	85.28 g	0.188 lb	0.781 m³/min	27.9 CFM	Tubeaxial	3.8 W	7700 RPM	60 mm	60 mm	0.63 in H2O	156.9 Pa	-20 ░C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	3 Wire Leads	Oil Resistant
Sanyo Denki America Inc. 9WFA0624P6G001	Ball	48 dB	20 mm	24 VDC	85.28 g	0.188 lb	0.781 m³/min	27.9 CFM	Tubeaxial	3.8 W	7700 RPM	60 mm	60 mm	0.63 in H2O	156.9 Pa	-20 ░C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	cURus TUV	4 Wire Leads	Oil Resistant
Sanyo Denki America Inc. 9WFA0924P4H001	Ball	52 dB		24 VDC			2.32 m³/min	83 CFM	Tubeaxial	6.72 W	6100 RPM	92 mm		0.69 in H2O	171.8 Pa	-20 ░C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	cURus TUV	4 Wire Leads	Oil Resistant	92 mm	0.375 lb	170.1 g	25.2 mm
Sanyo Denki America Inc. 9WFA0624G6002	Ball	48 dB	20 mm	24 VDC	85.28 g	0.188 lb	0.781 m³/min	27.9 CFM	Tubeaxial	3.8 W	7700 RPM	60 mm	60 mm	0.63 in H2O	156.9 Pa	-20 ░C	70 °C		cURus TUV	2 Wire Leads	Oil Resistant
