085780 Series
Manufacturer: Molex
Beta
⌘K

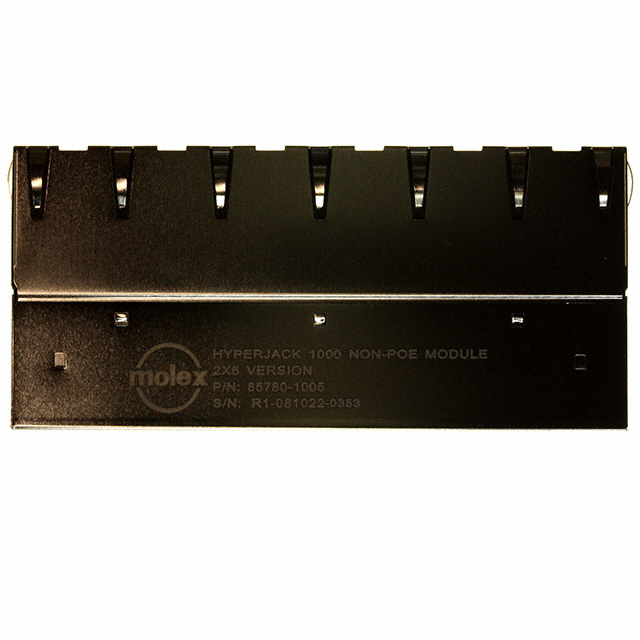

CONN JACK 12PORT 1000 BASE-T PCB
| Part | Shield Material | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Mounting Type | Orientation | Contact Finish | Contact Material | Number of Cores per Jack | Applications | Shielding | Features | LED Color | Number of Rows [custom] | Height Above Board | Height Above Board | Termination | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Tab Direction | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Brass | 30 Áin | 0.76 Ám | Thermoplastic | Through Hole | 90 ° | Gold | Phosphor Bronze | 8 | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | Board Guide | Green Orange - Green Orange | 2 | 25.46 mm | 1.002 " | Solder | 12 | 70 °C | 0 °C | Up and Down | RJ45 |
