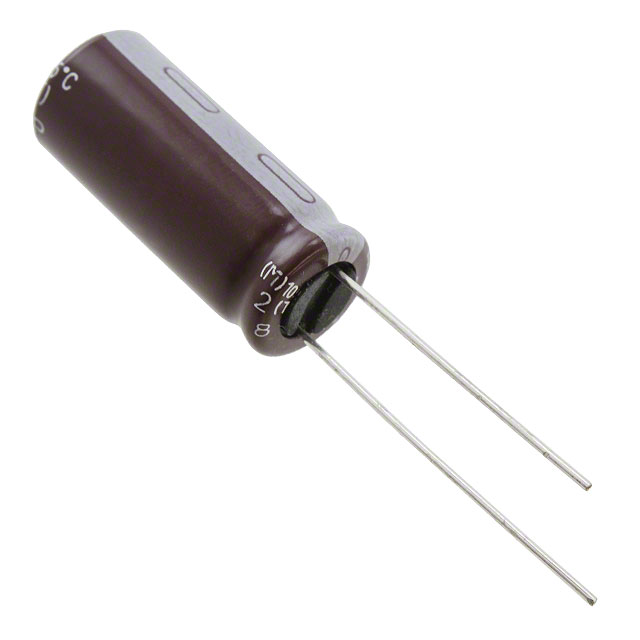

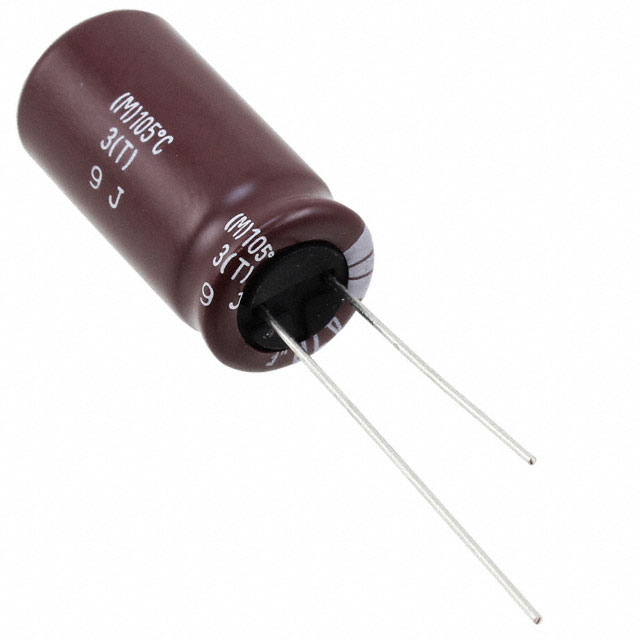

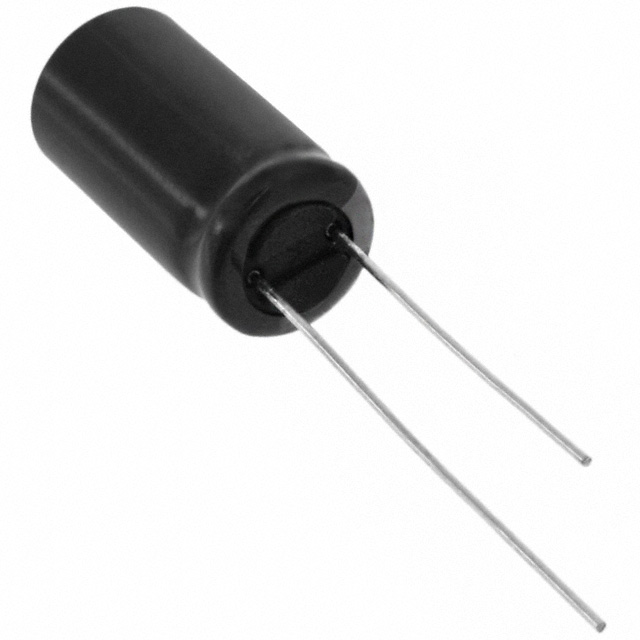

LXV Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 27UF 100 VOLT

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Polarization	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Package / Case	Lifetime @ Temp.	Impedance	Lead Spacing	Lead Spacing	Mounting Type	Capacitance	Ripple Current @ High Frequency	Tolerance	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con ELXV101ETD270MJC5S	14 mm	0.551 in	Automotive	Polar	133 mA	-55 C	105 ░C	0.394 in	10 mm	100 V	Can Radial	3000 Hrs	470 mOhms	0.197 "	5 mm	Through Hole	27 µF	380 mA	20 %	AEC-Q200
Chemi-Con ELXV6R3ETD222MJ30S	31.5 mm	1.24 in	Automotive	Polar	1.015 A	-55 C	105 ░C	0.394 in	10 mm	6.3 VDC	Can Radial	3000 Hrs	44 mOhms	0.197 "	5 mm	Through Hole	2200 µF	1.45 A	20 %	AEC-Q200
Chemi-Con ELXV100ELL681MH20D	21.5 mm	0.846 "	Automotive	Polar	416 mA	-55 C	105 ░C	0.315 in	8 mm	10 V	Can Radial	3000 Hrs	110 mOhms	0.138 in	3.5 mm	Through Hole	680 µF	640 mA	20 %	AEC-Q200
Chemi-Con ELXV630ELL680MJ16S			Automotive	Polar	183.05 mA	-55 C	105 ░C	0.394 in	10 mm	63 V	Can Radial	3000 Hrs	210 mOhms	0.197 "	5 mm	Through Hole	68 µF	523 mA	20 %	AEC-Q200	17.5 mm	0.689 in
Chemi-Con ELXV800ELL561ML35S			Automotive	Polar	1 A	-55 C	105 ░C	0.63 in	16 mm	80 V	Can Radial	5000 Hrs	52 mOhms	0.295 in	7.5 mm	Through Hole	560 µF	2 A	20 %	AEC-Q200		36.5 mm	1.437 "
Chemi-Con ELXV630ETE391MK30S	31.5 mm	1.24 in	Automotive	Polar	448 mA	-55 C	105 ░C	0.492 in	12.5 mm	63 V	Can Radial	5000 Hrs	170 mOhms	0.197 "	5 mm	Through Hole	390 µF	1.28 A	20 %	AEC-Q200
Chemi-Con ELXV630ETD151MJ25S			Automotive	Polar	273 mA	-55 C	105 ░C	0.394 in	10 mm	63 V	Can Radial	3000 Hrs	130 mOhms	0.197 "	5 mm	Through Hole	150 µF	780 mA	20 %	AEC-Q200		26.5 mm	1.043 in
Chemi-Con ELXV500ELL102MM25S			Automotive	Polar	1.212 A	-55 C	105 ░C	0.709 in	18 mm	50 VDC	Can Radial	5000 Hrs	30 mOhms	0.295 in	7.5 mm	Through Hole	1000 µF	2.02 A	20 %	AEC-Q200		26.5 mm	1.043 in
Chemi-Con ELXV500ELL181MJ20S	21.5 mm	0.846 "	Automotive	Polar	472.5 mA	-55 C	105 ░C	0.394 in	10 mm	50 VDC	Can Radial	3000 Hrs	88 mOhms	0.197 "	5 mm	Through Hole	180 µF	945 mA	20 %	AEC-Q200
Chemi-Con ELXV6R3ETD272MK25S			Automotive	Polar	1.19 A	-55 C	105 ░C	0.492 in	12.5 mm	6.3 VDC	Can Radial	5000 Hrs	34 mOhms	0.197 "	5 mm	Through Hole	2700 µF	1.7 A	20 %	AEC-Q200		26.5 mm	1.043 in
