1761469 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

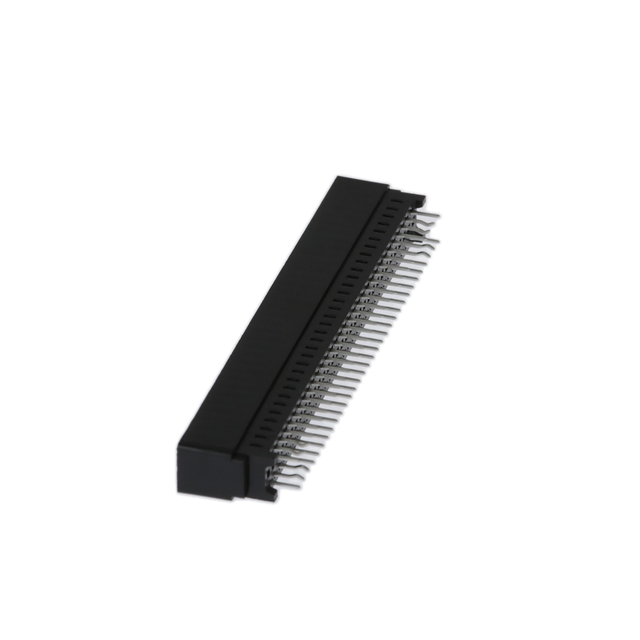

CARD EDGE CONNECTOR, DUAL SIDE, 1.78 MM, 64 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Pitch | Pitch | Mounting Type | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Number of Positions | Contact Finish | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Type | Termination | Card Thickness | Card Thickness | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyester Glass Filled | 0.1 " | 2.54 mm | Through Hole | 32 | 30 Áin | 0.76 Ám | Copper Alloy | Black | 64 | Gold | 2 | -55 C | 85 °C | Dual | Non Specified - Dual Edge | Solder | 1.57 mm | 0.062 in | Female |
