TZC3Z030 Series
Manufacturer: Murata Electronics
Beta
⌘K

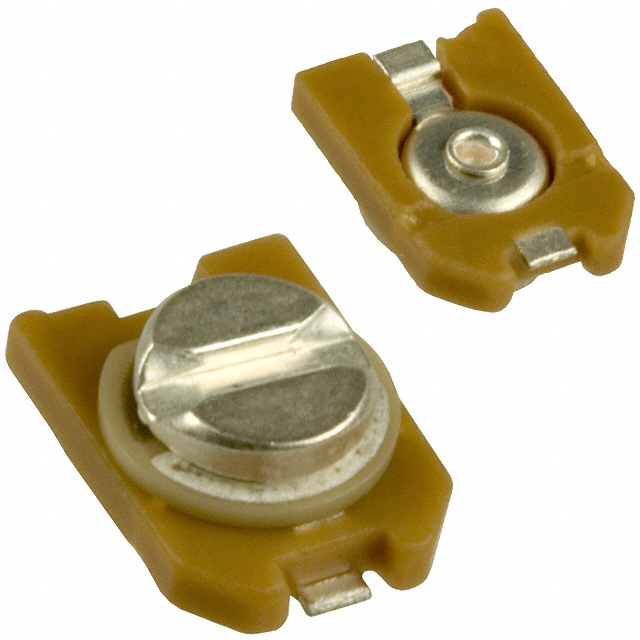

CAP TRIMMER 1.4-3PF 100V SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Adjustment Type | Operating Temperature [Max] | Operating Temperature [Min] | Q @ Freq | Capacitance Range [Max] | Capacitance Range [Min] | Dielectric Material | Features | Voltage - Rated | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 0.067 in | 1.7 mm | Surface Mount | Top | 85 °C | -25 °C | 1 MHz 300 | 3 pF | 1.4 pF | Ceramic | General Purpose | 100 V | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in |
