RHV3 Series

Isolated DC/DC Converters - Through Hole 3W 12Vi +/-12Vo 125mA Unreg

Manufacturer: Recom Power

Catalog

Isolated DC/DC Converters - Through Hole 3W 12Vi +/-12Vo 125mA Unreg

Catalog

Isolated DC/DC Converters - Through Hole 3W 12Vi +/-12Vo 125mA Unreg

Part	Number of Outputs	Applications	Power (Watts)	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Voltage - Output 2

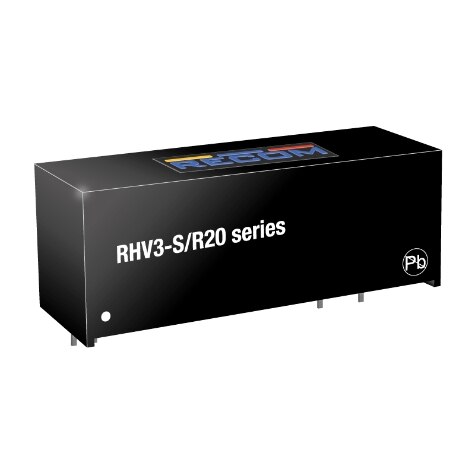

Recom Power RHV3-0512S/R20	1	ITE (Commercial) Laboratory	3 W	78 %	20000 VDC	4.5 V	12 V	Through Hole	250 mA	5.5 V	Isolated Module	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C
Recom Power RHV3-2412D/R20	2	ITE (Commercial) Laboratory	3 W	80 %	20000 VDC	21.6 V	12 V	Through Hole		26.4 V	Isolated Module	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C	125 mA	-12 V
Recom Power RHV3-2405S/R20	1	ITE (Commercial) Laboratory	3 W	80 %	20000 VDC	21.6 V	5 V	Through Hole	600 mA	26.4 V	Isolated Module	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C
Recom Power RHV3-2405D/R20	2	ITE (Commercial) Laboratory	3 W	80 %	20000 VDC	21.6 V	5 V	Through Hole	0.3 A	26.4 V	Isolated Module	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C		-5 V
Recom Power RHV3-2424S/R20	1	ITE (Commercial) Laboratory	3 W	81 %	20000 VDC	21.6 V	24 V	Through Hole	125 mA	26.4 V	Isolated Module	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C
Recom Power RHV3-0512D/R20	2	ITE (Commercial) Laboratory	3 W	80 %	20000 VDC	4.5 V	12 V	Through Hole		5.5 V	Isolated Module	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C	125 mA	-12 V
Recom Power RHV3-2412S/R20	1	ITE (Commercial) Laboratory	3 W	80 %	20000 VDC	21.6 V	12 V	Through Hole	250 mA	26.4 V	Isolated Module	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C
Recom Power RHV3-0505S/R20	1	ITE (Commercial) Laboratory	3 W	76 %	20000 VDC	4.5 V	5 V	Through Hole	600 mA	5.5 V	Isolated Module	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C
Recom Power RHV3-1224S/R20	1	ITE (Commercial) Laboratory	3 W	80 %	20000 VDC	10.8 V	24 V	Through Hole	125 mA	13.2 V	Isolated Module	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C
Recom Power RHV3-1212D/R20	2	ITE (Commercial) Laboratory	3 W	81 %	20000 VDC	10.8 V	12 V	Through Hole		13.2 V	Isolated Module	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	80 °C	-40 C	125 mA	-12 V
