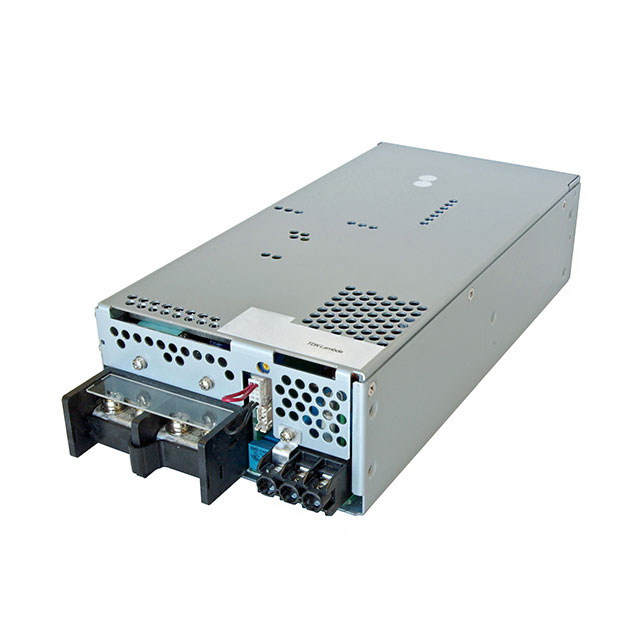

RWS1500 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.536 KW, 48 V, 32 A

Part	Features	Current - Output 1	Efficiency	Power (Watts)	Type	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Mounting Type	Number of Outputs	Applications	Voltage - Output 1	Voltage - Output 1 [custom]
TDK Corporation RWS1500B-48/RF	Adjustable Output DC Input Capable Remote Sense Universal Input	32 A	88 %	1.536 kW	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261.1 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)	48 V
TDK Corporation RWS1500B-24/ME	Remote Sense Universal Input	63 A	88 %	1512 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261.1 mm	2.48 "	5 in	CE	Chassis Mount	1	Medical	24 V
TDK Corporation RWS1500B-36	Adjustable Output PFC Remote Sense Universal Input	42 A	88 %	1500 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)		36 V
TDK Corporation RWS1500B-12/ME	Remote Sense Universal Input	125 A	85 %	1500 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261.1 mm	2.48 "	5 in	CE	Chassis Mount	1	Medical	12 V
TDK Corporation RWS1500B-15/CO2	Adjustable Output DC Input Capable Remote Sense Universal Input	100 A	85 %	1500 W	Conformal Coated Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261.1 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)	15 V
TDK Corporation RWS1500B-15/FO	Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input	100 A	85 %	1500 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261.1 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)	15 V
TDK Corporation RWS1500B-24/FO	Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input	63 A	88 %	1512 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261.1 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)	24 V
TDK Corporation RWS1500B-36/RF	Adjustable Output DC Input Capable Remote Sense Universal Input	42 A	88 %	1512 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261.1 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)		36 V
TDK Corporation RWS1500B-24	Adjustable Output PFC Remote Sense Universal Input	63 A	88 %	1500 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)	24 V
TDK Corporation RWS1500B-48	Adjustable Output PFC Remote Sense Universal Input	32 A	88 %	1500 W	Enclosed	4000 V	85 VAC 120 VDC	265 VAC 340 VDC	60 °C	-20 °C	10.28 in	5 in	63 mm	261 mm	2.48 "	5 in	CE	Chassis Mount	1	ITE (Commercial)	48 V
